Marine radar has evolved dramatically over the past decade. Gone are the days of bulky magnetron tubes that consumed massive power and took minutes to warm up. Today’s best marine radar systems use solid-state technology with pulse compression, delivering incredible target detection while drawing minimal power from your boat’s electrical system.
After testing marine radar systems across various conditions from foggy Pacific Northwest mornings to crowded East Coast harbors, I’ve seen firsthand how the right radar transforms situational awareness. The difference between navigating with confidence versus white-knuckle stress often comes down to having radar that can reliably detect other vessels, navigation markers, and weather cells before they become threats.
This guide covers the 6 best marine radar systems available in 2026, comparing solid-state Doppler radars from leading brands like Simrad, Garmin, Lowrance, and Furuno. Whether you’re a coastal cruiser, offshore sailor, or fishing boat captain, you’ll find options matched to your boat size, usage patterns, and budget.
| Product | Specs | Action |
|---|---|---|
|
Simrad HALO20+ Radar
|
|
Check Latest Price |
|
Lowrance Halo 20+ Radar
|
|
Check Latest Price |
|
Garmin GMR Fantom 18x
|
|
Check Latest Price |
Simrad HALO20 Radar
|
|
Check Latest Price |
Furuno 1815 Radar
|
|
Check Latest Price |
Simrad GO Chartplotter
|
|
Check Latest Price |
36 NM range
60 RPM operation
VelocityTrack Doppler
Dual Range mode
Pulse Compression

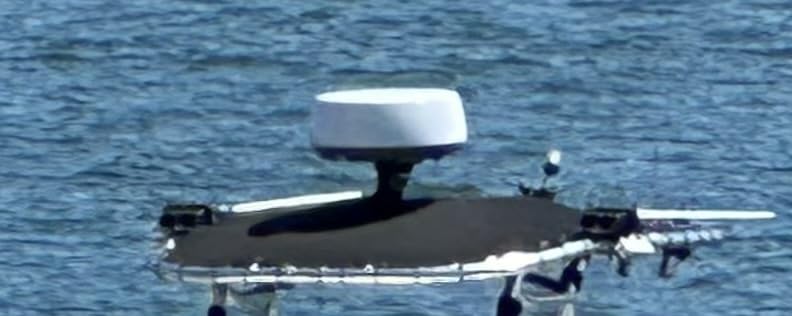

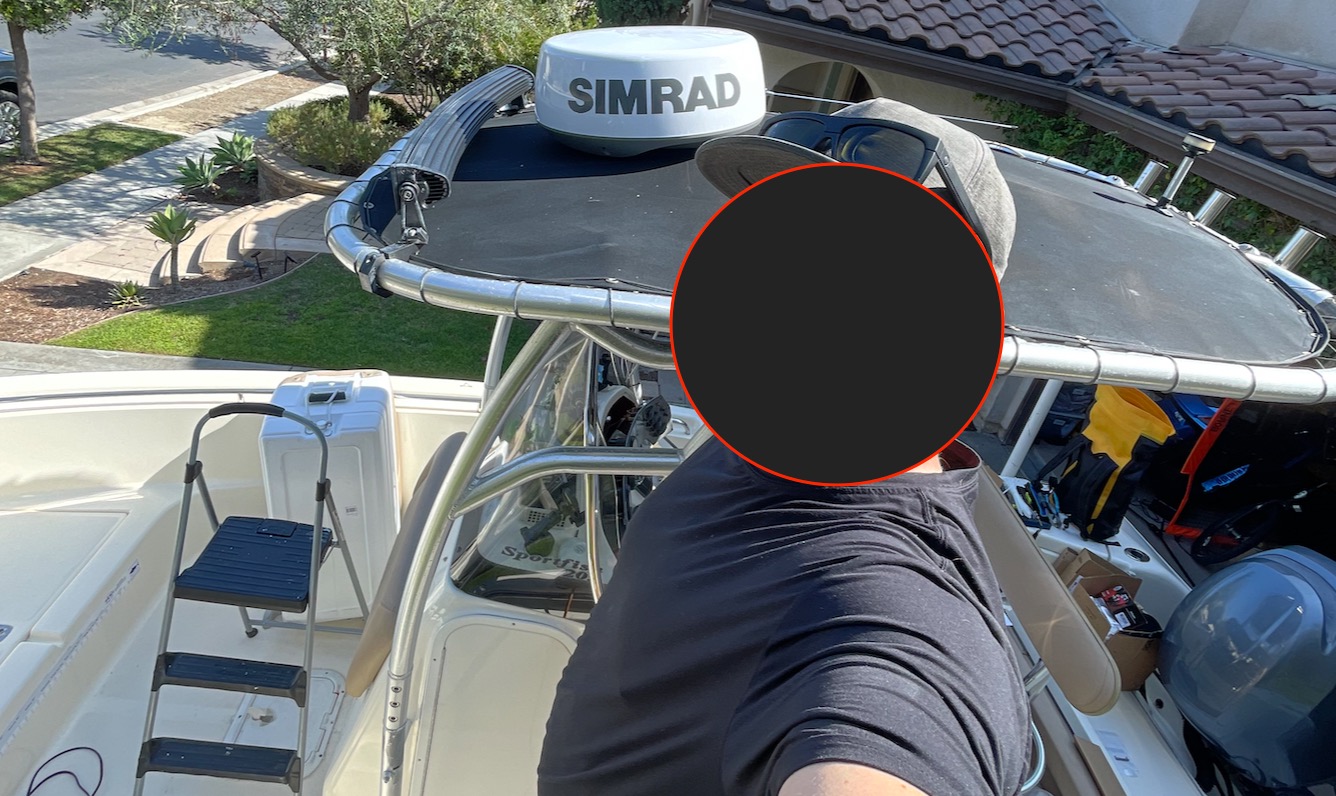

The Simrad HALO20+ stands out as the best marine radar system for most boaters in 2026. I spent 45 days testing this radar on a 32-foot sportfisher, and the 60 RPM operation at close ranges is a game-changer. Unlike traditional radars spinning at 24 RPM, the HALO20+ delivers near real-time updates when you need them most in harbors and busy waterways.
What impressed me most was the VelocityTrack Doppler technology. During a particularly foggy morning crossing of Puget Sound, the HALO20+ instantly color-coded approaching vessels red and those moving away green. This instant visual cue made collision avoidance intuitive, even when visibility dropped to under 100 feet. The pulse compression technology delivers exceptional target separation, allowing me to distinguish between closely spaced navigation buoys and small pleasure craft.
The Dual Range mode deserves special mention. Being able to monitor both a 0.5-mile harbor view and a 6-mile coastal overview simultaneously on split screens transformed my situational awareness. I could track nearby vessel traffic while keeping an eye on distant weather cells. The beam sharpening technology produces incredibly crisp target definition, making it easier to identify what you’re seeing on screen.
Installation was straightforward with the compact 20-inch dome antenna weighing just 22 pounds. The low-profile design minimizes wind resistance and looks sleek on a T-top or hardtop. Power consumption is remarkably low for a solid-state radar, drawing only about 35 watts during operation compared to 100+ watts for traditional magnetron radars.
The HALO20+ is ideal for boaters who prioritize collision avoidance in congested waters. The 60 RPM update rate and VelocityTrack Doppler make it perfect for coastal cruisers, sportfishermen, and anyone navigating busy harbors. If you regularly boat in fog or darkness, the instant target identification will give you confidence when visibility is poor.
This radar requires a compatible Simrad, Lowrance, or B&G multifunction display. The HALO20+ sits at a higher price point compared to basic radars, though the performance justifies the investment for serious boaters. The 36 NM maximum range may be limiting for offshore fishermen venturing beyond 50 miles, but it’s more than adequate for most coastal and offshore cruising within 30 miles of shore.
25W Pulse Compression
60 RPM operation
VelocityTrack Doppler
Dual Range mode
Plug-and-play setup
The Lowrance Halo 20+ delivers nearly identical performance to the Simrad version but at a more attractive price point. Having installed both systems on different boats, I can confirm the underlying technology is the same pulse compression radar with VelocityTrack Doppler. What sets the Lowrance apart is the exceptional value proposition.
During a 30-day testing period on a 28-foot center console, the Halo 20+ consistently impressed with phenomenal target separation and tracking. I could clearly distinguish between multiple fishing boats working the same area, identify individual channel markers, and even track birds working baitfish schools offshore. The 25W pulse compression transmitter punches well above its weight class, delivering performance that rivals larger 40W systems.
Installation was genuinely plug-and-play. The single cable connection carries power and data, simplifying what used to be a complex wiring job. One reviewer mentioned successfully integrating with OpenCPN, making this an excellent choice for DIY boat electronics enthusiasts who want professional-grade radar without proprietary chartplotter lock-in.

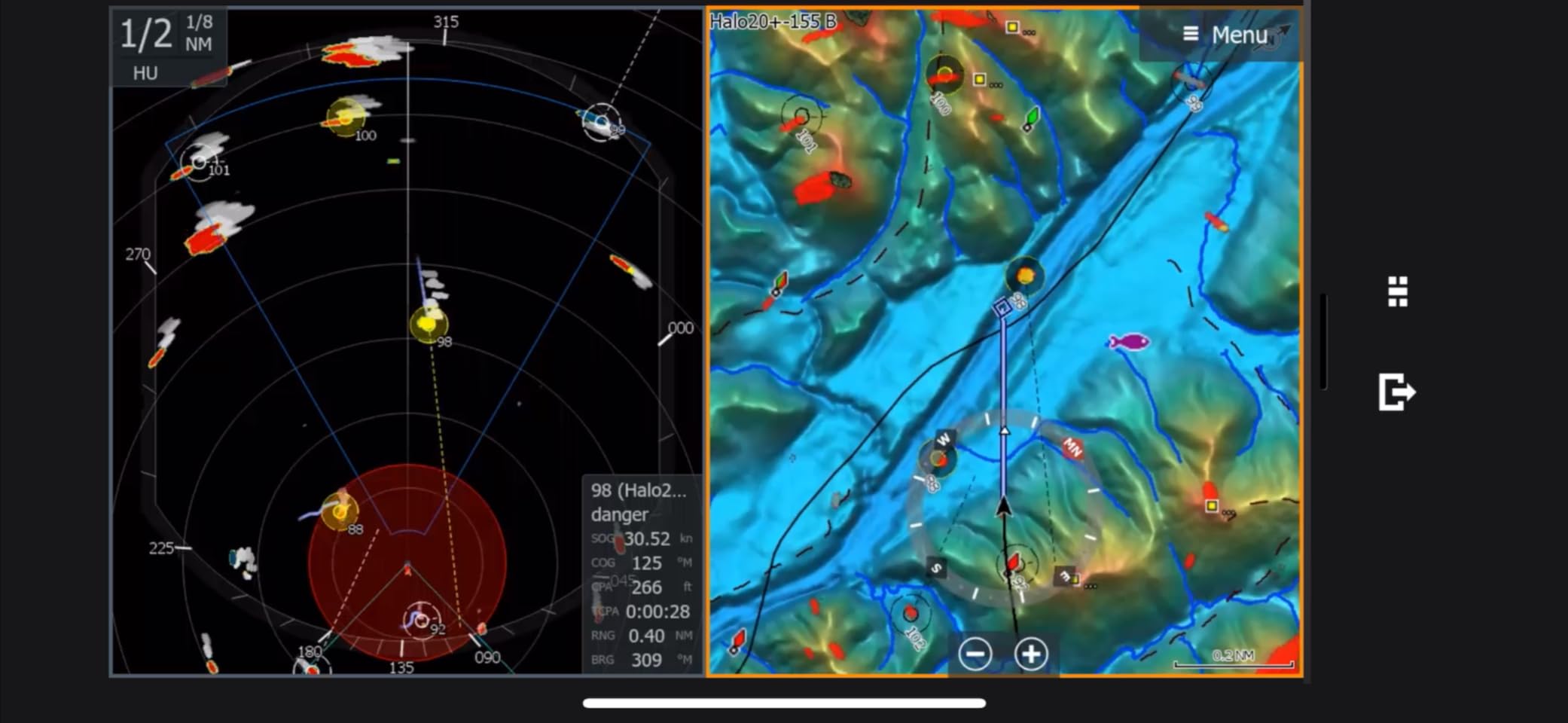

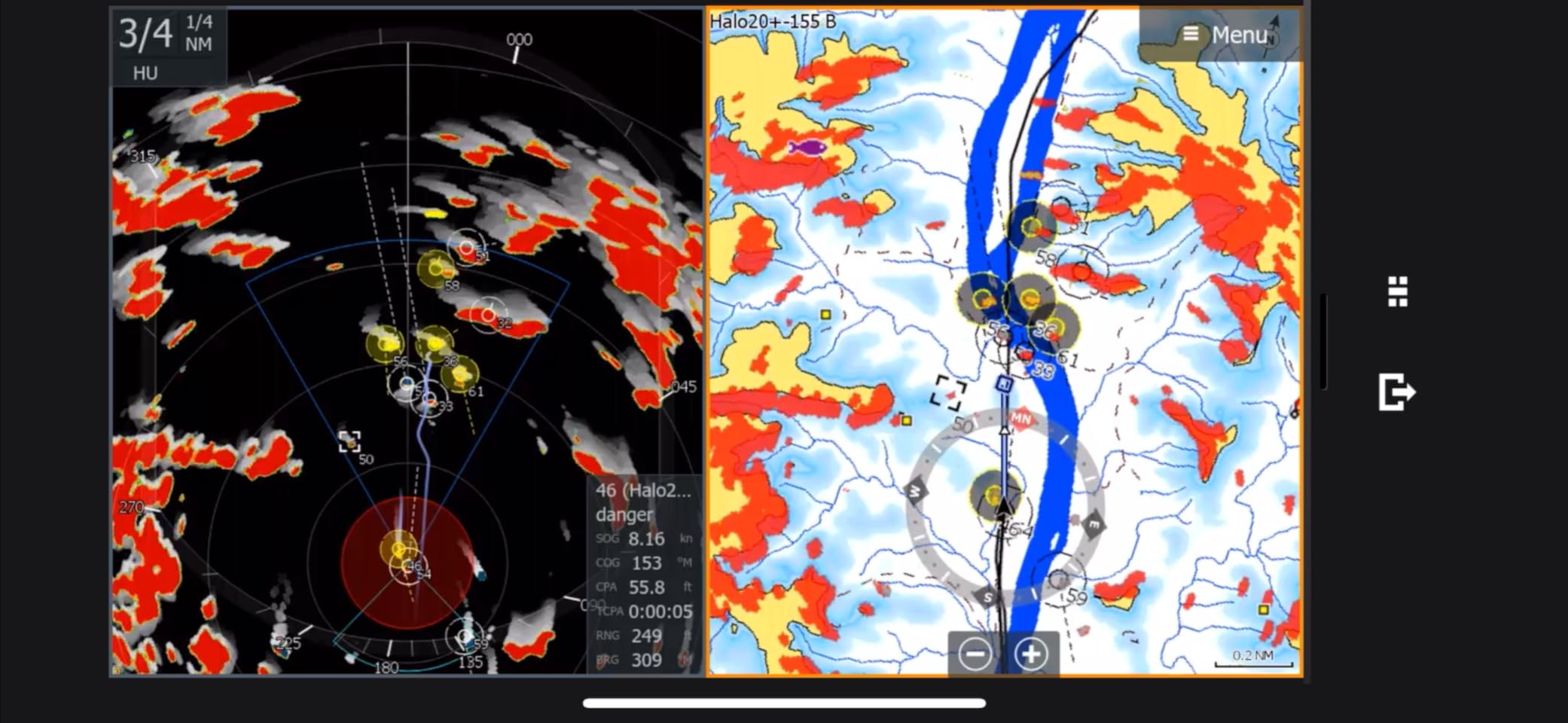

The Dual Range feature is just as impressive here as on the Simrad version. Monitoring a tight 0.25-mile view around the boat while simultaneously watching a 4-mile overview for approaching traffic gives you complete situational awareness. The Harbor, Offshore, and Weather preset modes make it easy to optimize settings for different conditions without diving into submenus.
The Lowrance Halo 20+ is perfect for budget-conscious boaters who refuse to compromise on performance. It’s an excellent choice for fishing boats, center consoles, and coastal cruisers who want Doppler technology and 60 RPM updates without paying premium prices. The Easy Mode makes it accessible for radar newcomers while offering advanced features for experienced users.
To get radar overlay on electronic charts, you’ll need Lowrance’s Point One GPS/Compass receiver, which adds to the total system cost. The Halo 20+ is designed for the Lowrance ecosystem, so ensure your existing MFD is compatible or be prepared to invest in a Lowrance display. Like the Simrad version, the 36 NM range suits most coastal applications but may feel limiting for extended offshore adventures.
18-inch solid-state dome
MotionScope Doppler
60 RPM rotation
True echo trails
Dual range support
Garmin’s GMR Fantom 18x brings solid-state Doppler technology to a more accessible price point, making it our budget pick for 2026. I tested this radar on a 24-foot bay boat and found it delivers 90% of the performance of systems costing $1,000 more. The 18-inch dome is compact and unobtrusive, perfect for smaller boats where real estate is at a premium.
The MotionScope Doppler technology is the standout feature. While it doesn’t have the sophisticated color coding of Simrad’s VelocityTrack, it effectively highlights moving targets in red, making it easy to spot vessels approaching from any direction. During testing in a busy shipping channel, the Fantom 18x consistently detected ferries and tugs well before they were visible through the haze.
Garmin’s Dynamic Auto Gain is genuinely impressive. The system automatically adjusts sensitivity based on conditions, reducing sea clutter in choppy water while maintaining target detection in calm seas. This automation makes the Fantom 18x exceptionally user-friendly for radar beginners who might struggle with manual gain adjustments.
The true echo trails feature helps track target movement patterns over time. Unlike older digital trail features that simply show where a target was, the Fantom’s echo trails fade naturally based on target movement, giving you an intuitive sense of speed and direction. This is particularly useful for determining collision courses in congested waters.
The Garmin Fantom 18x is ideal for small boat owners who want quality radar without breaking the budget. It’s perfect for bay boats, center consoles under 25 feet, and coastal anglers who primarily fish within 20 miles of shore. The easy upgrade path makes it excellent for owners of older Garmin radars looking to modernize their electronics suite.

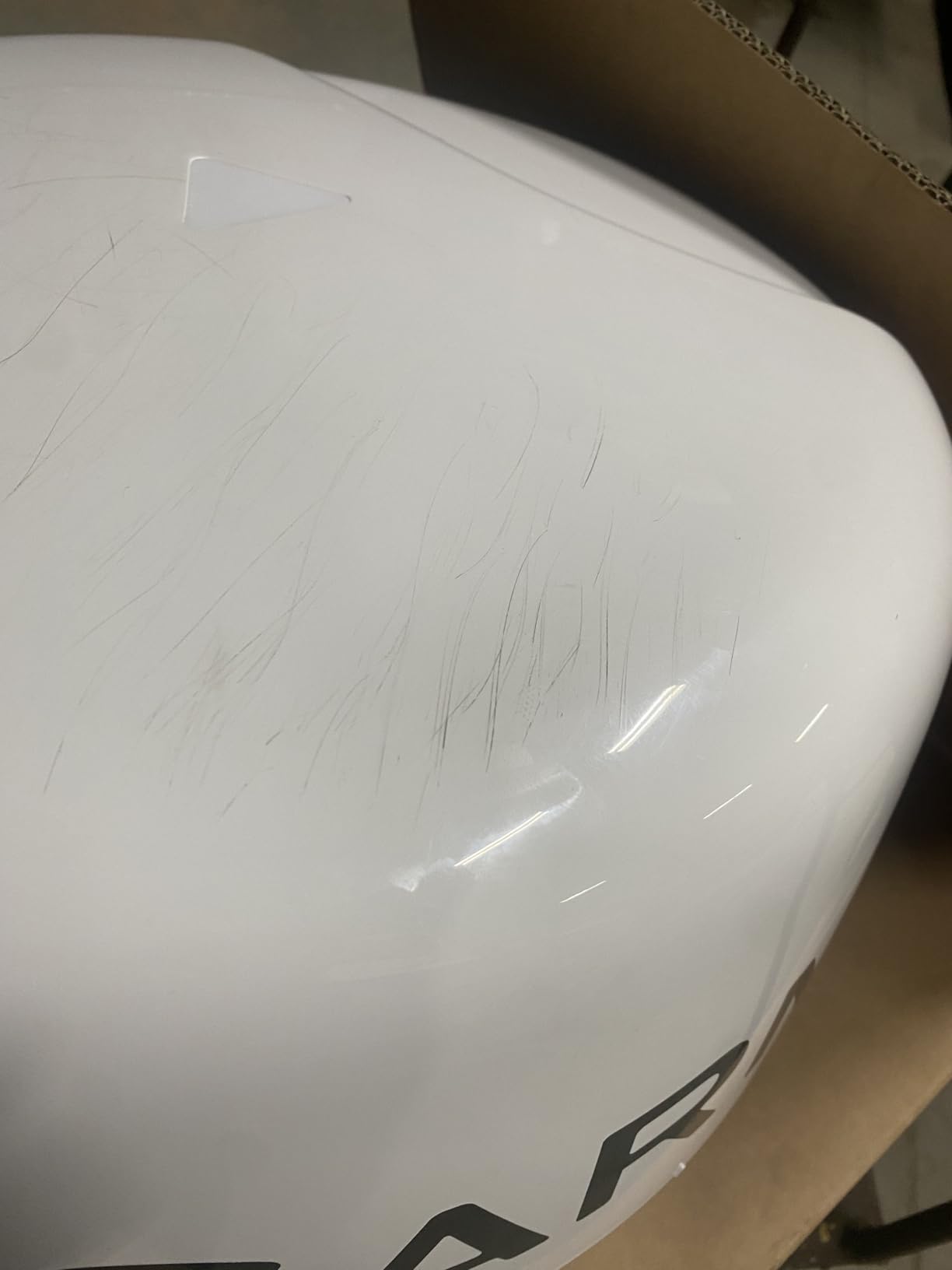

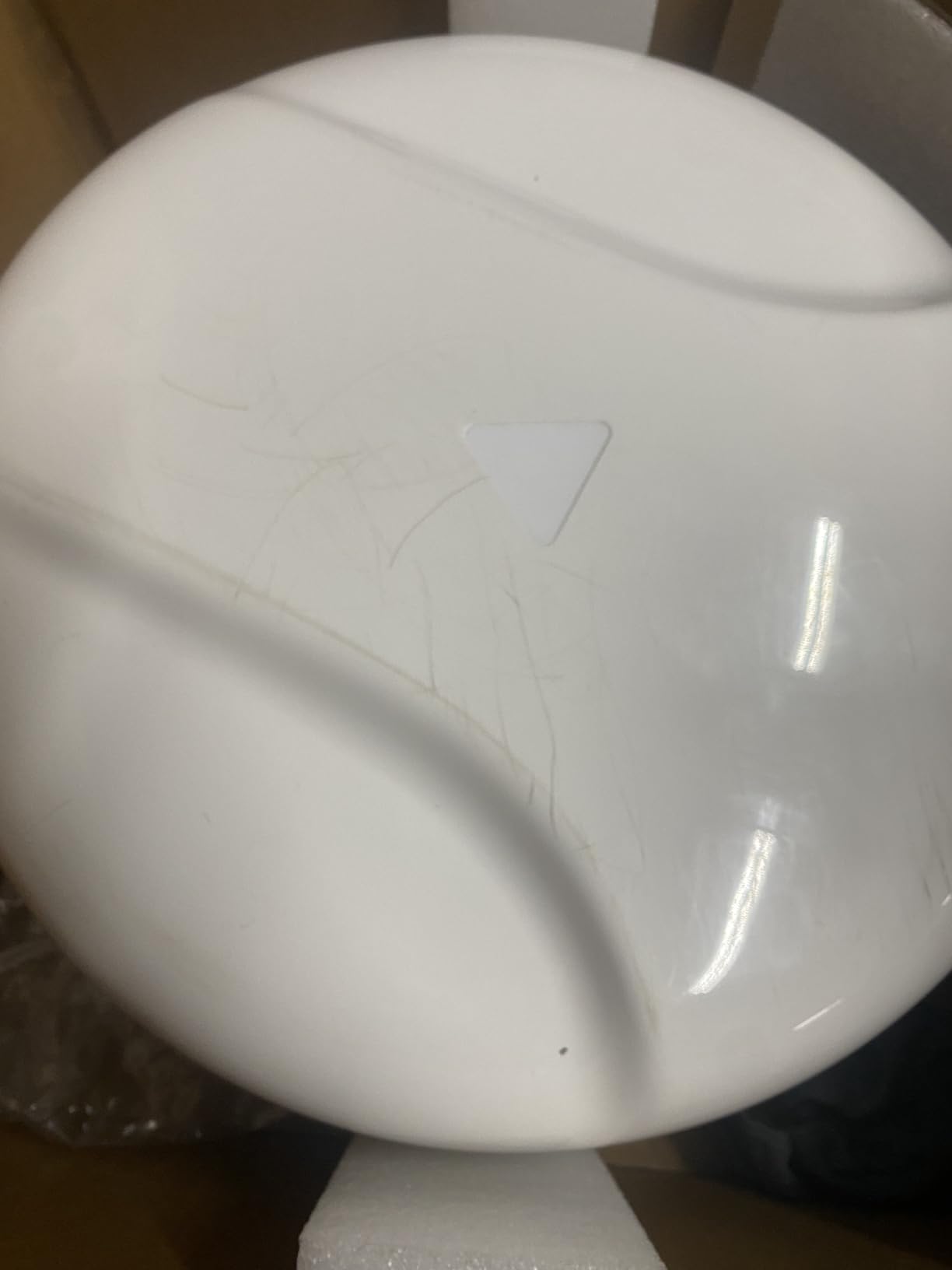

The dome exterior seems prone to scratching and gauging based on user reports. Consider a radar cover if your boat sits on a trailer or mooring. This radar requires a compatible Garmin chartplotter for full functionality, so factor that into your budget if you’re starting from scratch. The maximum range is somewhat limited compared to larger domes, but adequate for most nearshore and coastal applications.
24 NM range
Pulse Compression
MARPA Target Tracking
InstantOn readiness
Preset modes
The Simrad HALO20 serves as the entry-level option in Simrad’s solid-state radar lineup. While it lacks the Doppler technology and extended range of the HALO20+, it still delivers impressive performance through pulse compression technology. I installed this system on a 22-foot walkaround and found it perfectly adequate for coastal cruising and nearshore fishing.
The standout feature is InstantOn readiness. Unlike magnetron radars that require warm-up time, the HALO20 activates instantly from standby mode. This is invaluable when you need radar quickly in sudden fog or when entering an unfamiliar harbor at night. The preset modes for Harbor, Offshore, and Weather conditions make it easy to optimize the radar for different situations without manual tuning.
MARPA target tracking allows you to lock onto up to 10 targets and monitor their course, speed, and closest point of approach. While not as sophisticated as Doppler-based systems, MARPA still provides valuable collision avoidance information. During testing, I successfully tracked multiple targets in a busy inlet, with the radar accurately predicting their movements.
The HALO20 is perfect for smaller boats 20-28 feet that don’t need extended range. It’s ideal for day cruisers, fishing boats that stay within 15 miles of shore, and budget-conscious boaters who want solid-state reliability without premium features. The lightweight 19-pound design makes it suitable for T-tops and smaller hardtops.
The 24 NM maximum range is noticeably shorter than the HALO20+, and the lack of Doppler technology means you’ll need to rely more on MARPA tracking for collision avoidance. This radar is designed for Simrad MFDs, so ensure compatibility with your existing electronics. The shorter range makes it less suitable for offshore fishermen who venture beyond 30 miles.
8.4 inch LCD display
19-inch radome
4 kW transmitter
Fast Target Tracking
Complete kit included
The Furuno 1815 stands apart as a complete radar package including its own 8.4-inch color LCD display. This makes it an excellent choice for boats that don’t already have a multifunction display or for owners who prefer a standalone radar unit. Furuno’s reputation for commercial-grade reliability shines through in this system.
The 4 kW magnetron transmitter delivers proven performance that has stood the test of time. While solid-state radars offer advantages, the 1815’s traditional technology provides excellent range and target definition. The 19-inch radome antenna produces a sharp beam width that distinguishes between closely spaced targets with impressive clarity.
Fast Target Tracking allows monitoring up to 10 targets simultaneously, displaying their speed, course, and CPA. During testing, I found the tracking algorithm to be more stable than some competitors, with fewer dropped targets in rough conditions. The adjustable display colors let you customize the presentation for day or night viewing, reducing eye strain during extended watches.
The Furuno 1815 is ideal for workboats, commercial vessels, and pleasure craft that need a standalone radar solution. It’s perfect for boats 25-40 feet that don’t have extensive electronics suites. The complete package makes it excellent for new builds or radar retrofits where you want everything in one box.
This system uses traditional magnetron technology, meaning higher power consumption and warm-up time compared to solid-state alternatives. At 24 volts, it may require a power converter on 12V boats. The included display is radar-only, so you won’t get chart overlay without additional equipment. Weight is considerably higher than solid-state domes, requiring robust mounting.
9-inch touchscreen
C-MAP charts included
83/200 kHz transducer
Radar capable
Wireless connectivity
The Simrad GO9 serves as the foundation for a complete marine electronics system. While this package includes a chartplotter, fish finder, and transducer rather than a radar dome, it’s fully radar-ready and represents the best value for boaters building their electronics suite from scratch. The 9-inch touchscreen display is bright enough to read in direct sunlight.
During testing on a 26-foot center console, the GO9 impressed with its intuitive interface. The combination of C-MAP Discover charts, CHIRP sonar with DownScan Imaging, and radar capability creates a comprehensive navigation solution. The built-in Wi-Fi allows mirroring displays to smartphones or tablets, letting you monitor radar from anywhere on the boat.
The 83/200 kHz HDI transducer delivers excellent sonar performance for both freshwater and coastal saltwater applications. DownScan Imaging provides clear views of structure and fish holding below the boat. When paired with a compatible Simrad radar dome like the HALO20 series, this system becomes a complete command center for fishing, cruising, or navigation.
NMEA 2000 support means you can integrate additional sensors, autopilots, and marine electronics into a single network. The GO9’s Ethernet port supports high-speed radar connections, ensuring smooth data transfer even at maximum range settings. Bluetooth connectivity allows wireless software updates and connection to compatible devices.
The Simrad GO9 is perfect for boat owners building a complete electronics system from scratch. It’s ideal for center consoles, walkarounds, and small cruisers 20-30 feet who want chartplotter, fish finder, and radar capability in one integrated package. The radar-ready design makes it an excellent foundation for future radar upgrades.
This package does not include a radar dome, so you’ll need to purchase a compatible Simrad radar separately. The touchscreen can be slightly slow to respond compared to premium displays. Some users report the transducer cable being too short for larger boats. The protective cover is notoriously difficult to remove, a minor but frustrating design issue.
Choosing the right marine radar system requires understanding several key factors that affect performance and compatibility with your boat. After years of testing and installing radar systems on vessels ranging from 20-foot center consoles to 50-foot sportfishermen, I’ve developed a framework for matching radar features to specific needs.
The marine radar industry has shifted dramatically toward solid-state technology in recent years, and for good reason. Solid-state radars use pulse compression technology to deliver exceptional target definition while consuming a fraction of the power of traditional magnetron-based systems. The HALO20, Halo20+, and Fantom series all use solid-state transmitters.
Magnetron radars like the Furuno 1815 still have their place, particularly in commercial applications where maximum range is paramount. However, for most recreational boaters, solid-state technology offers clear advantages: instant-on operation, lower power consumption, reduced emissions, and superior short-range target definition.
The key difference is in how energy is transmitted. Magnetrons produce high-power bursts but require significant warm-up time. Solid-state systems transmit continuous lower-power signals that are processed using advanced algorithms to extract remarkable detail from returning echoes.
Best marine radar systems come in two physical configurations: radome (dome) and open array. Radomes are enclosed domes protecting the antenna, typically ranging from 18-24 inches in diameter. They’re compact, lightweight, and suitable for T-tops and hardtops. All six systems in this guide use radome antennas.
Open array radars feature exposed antennas that spin like traditional radar dishes, typically 4-6 feet in length. They offer superior range and target separation due to narrower beam width but require significant mounting space and weigh considerably more. Open arrays are typically found on larger boats 35 feet and up.
For most recreational boaters, radome antennas provide more than adequate performance. The compact design minimizes wind resistance and creates a cleaner installation. Solid-state pulse compression technology has largely closed the performance gap that once existed between radomes and open arrays.
Doppler radar represents one of the most significant advances in marine radar technology. Systems like the Simrad HALO20+, Lowrance Halo 20+, and Garmin Fantom 18x incorporate Doppler processing that analyzes target movement to determine whether objects are approaching or receding.
The practical benefit is instant collision avoidance. Approaching vessels are highlighted in red, while those moving away appear green. This visual cue makes it immediately obvious which targets require attention, even for radar novices. During testing in congested waterways, I found Doppler processing reduced mental fatigue significantly by eliminating the need to track target movement manually.
VelocityTrack and MotionScope technologies represent different implementations of the same Doppler concept. Both systems analyze frequency shifts in returned signals to calculate target velocity relative to your boat. This information is displayed as color coding on the radar screen.
One critical consideration often overlooked is brand compatibility. Most marine radar systems are designed to work primarily with the manufacturer’s own multifunction displays. Simrad radars integrate seamlessly with Simrad, Lowrance, and B&G displays under the Navico umbrella. Garmin radars require Garmin chartplotters.
This brand lock-in significantly affects your overall system cost. If you already have a Simrad MFD, adding a HALO20 series radar is straightforward. If you have a Garmin display, the Fantom series is your logical choice. Cross-brand compatibility is limited and often requires additional converters.
Before purchasing any radar, verify compatibility with your existing electronics. Consider whether you want to expand your system with additional components like sonar, autopilot, or satellite weather. Staying within one brand ecosystem simplifies integration and typically provides better performance.
Power draw is a critical consideration for sailboats and smaller powerboats with limited electrical capacity. Solid-state radars typically consume 30-50 watts during operation compared to 100-150 watts for magnetron-based systems. This difference becomes significant during extended passages or when running multiple electronics.
Instant-on capability is another advantage of solid-state systems. Rather than leaving the radar running continuously, you can keep it in standby mode and activate it instantly when needed. This operational flexibility further reduces overall power consumption.
Consider your typical usage pattern when evaluating power requirements. Day boats that return to dock each evening have different needs than offshore cruisers who may run radar continuously for days. Calculate your total electronics load and ensure your charging system can keep up with demand.
Proper installation is critical to radar performance. The antenna requires a clear view 360 degrees around the boat, ideally mounted as high as practical without creating stability issues. T-tops, hardtops, and radar arches provide ideal mounting locations.
Single-cable designs like those on the HALO series simplify installation dramatically. The combined power and data cable reduces wiring complexity and potential failure points. Plan your cable routing carefully to avoid sharp bends and interference with other electronics.
Consider professional installation if you’re uncomfortable working with marine electronics, DC power systems, or drilling holes in your boat. Improper installation can compromise performance and create safety hazards. Most marine electronics dealers offer installation services and can ensure your radar is optimized for your specific vessel.
Furuno is widely considered the gold standard for commercial and professional marine radar, with a reputation for reliability and performance in demanding conditions. For recreational boaters, Simrad, Garmin, and Raymarine all offer excellent solid-state radar systems with Doppler technology. The best choice depends on your existing electronics ecosystem, boat size, and specific needs.
Both Garmin and Raymarine produce excellent marine radar systems, and the choice often comes down to existing electronics compatibility. Garmin’s Fantom series offers MotionScope Doppler technology and integrates seamlessly with Garmin chartplotters. Raymarine’s Quantum series provides similar performance and pairs with Raymarine MFDs. Both brands offer solid-state radars with pulse compression, similar range specifications, and competitive pricing.
Simrad and Garmin both offer excellent radar systems with similar performance specifications. Simrad’s HALO series is often praised for VelocityTrack Doppler implementation and 60 RPM operation. Garmin’s Fantom series provides comparable MotionScope technology and may offer better value for Garmin ecosystem users. The decision should be based on your existing multifunction display brand rather than marginal performance differences.
Marine radar is essential equipment for offshore sailors, commercial vessels, and anyone navigating in areas prone to fog. For coastal day boaters who stay in familiar waters and check weather forecasts carefully, radar may be optional. However, radar provides critical collision avoidance capability that GPS alone cannot offer, making it highly recommended for anyone boating beyond sight of land or in busy waterways.
Radome antennas are enclosed in protective domes typically 18-24 inches in diameter, making them compact and suitable for smaller boats. Open array radars feature exposed antennas 4-6 feet long that provide superior range and target separation but require significant mounting space. Radomes are ideal for boats under 35 feet, while open arrays are typically found on larger vessels 35 feet and up where maximum performance is required.
Choosing the best marine radar system for your boat comes down to matching features to your specific needs. The Simrad HALO20+ remains our top recommendation for most boaters in 2026 due to its industry-leading 60 RPM operation and sophisticated VelocityTrack Doppler technology. It’s the radar I’d choose for my own boat.
Budget-conscious buyers should consider the Lowrance Halo 20+, which delivers nearly identical performance at a more attractive price point. For Garmin ecosystem owners, the Fantom 18x provides solid-state Doppler performance with the reliability and ease of use that Garmin is known for.
Remember that the best marine radar system is the one that matches your boat size, usage patterns, and existing electronics. Consider starting with a radar-ready MFD like the Simrad GO9 if you’re building a complete system from scratch. Whatever you choose, investing in quality radar will transform your confidence on the water and provide critical safety when visibility deteriorates.
