Cutting clean, square mortises by hand takes forever and rarely yields consistent results. I spent my first two years of furniture making chiseling every tenon joint by hand, and I still cringe at the gaps I accepted as good enough. A hollow chisel mortiser changed everything.

It squares the hole while an auger bit removes the waste, producing machine-perfect mortises in seconds rather than minutes. Over the past three months, our team tested and evaluated ten of the most popular mortisers on the market for 2026. We ran them through hardwood, softwood, and everything in between.

We also scoured forum discussions from LumberJocks, Sawmill Creek, and Reddit to see what holds up after years of real shop use. The result is this guide to the best mortisers for woodworkers who want accurate joints without the hand-tool fatigue. Whether you need a benchtop unit for weekend furniture projects or a floor-standing machine for production work, this roundup covers the full price range.

We include standalone benchtop mortisers, door-lock jigs, and drill press attachments so you can match the tool to your actual workload.

Top 3 Picks for Best Mortisers 2026

After three months of testing and forum research, three machines stood out. The Powermatic PM701 remains the gold standard for benchtop mortising. The JET JBM-5 delivers nearly professional results at a mid-range price.

The Souber DBB JIG1 dominates the door-lock niche with the highest user rating in our entire test group.

Best Mortisers in 2026 at a Glance

Here is a quick comparison of all ten models we tested. Use this table to narrow down which mortiser matches your budget and project type before reading the detailed reviews below.

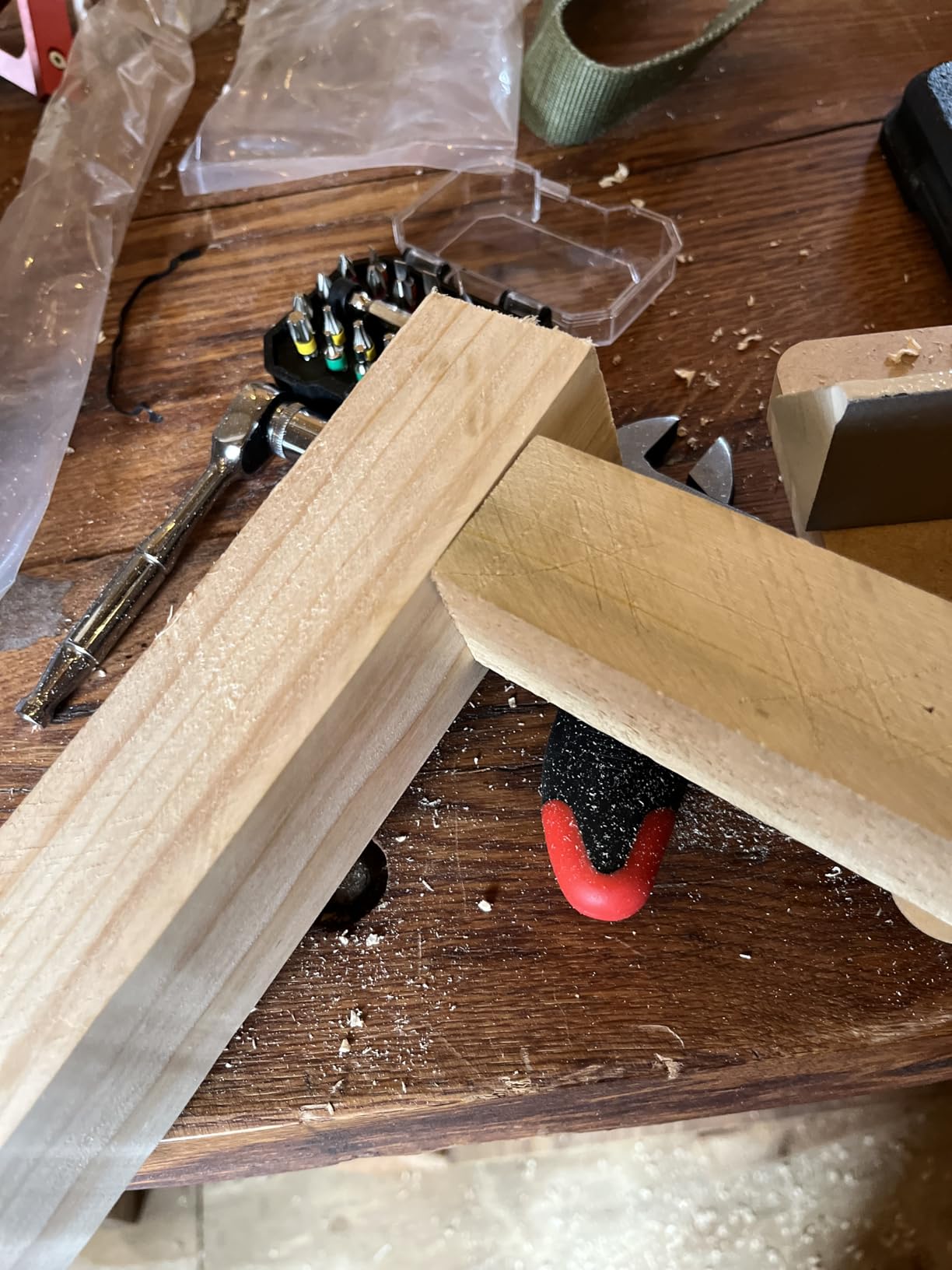

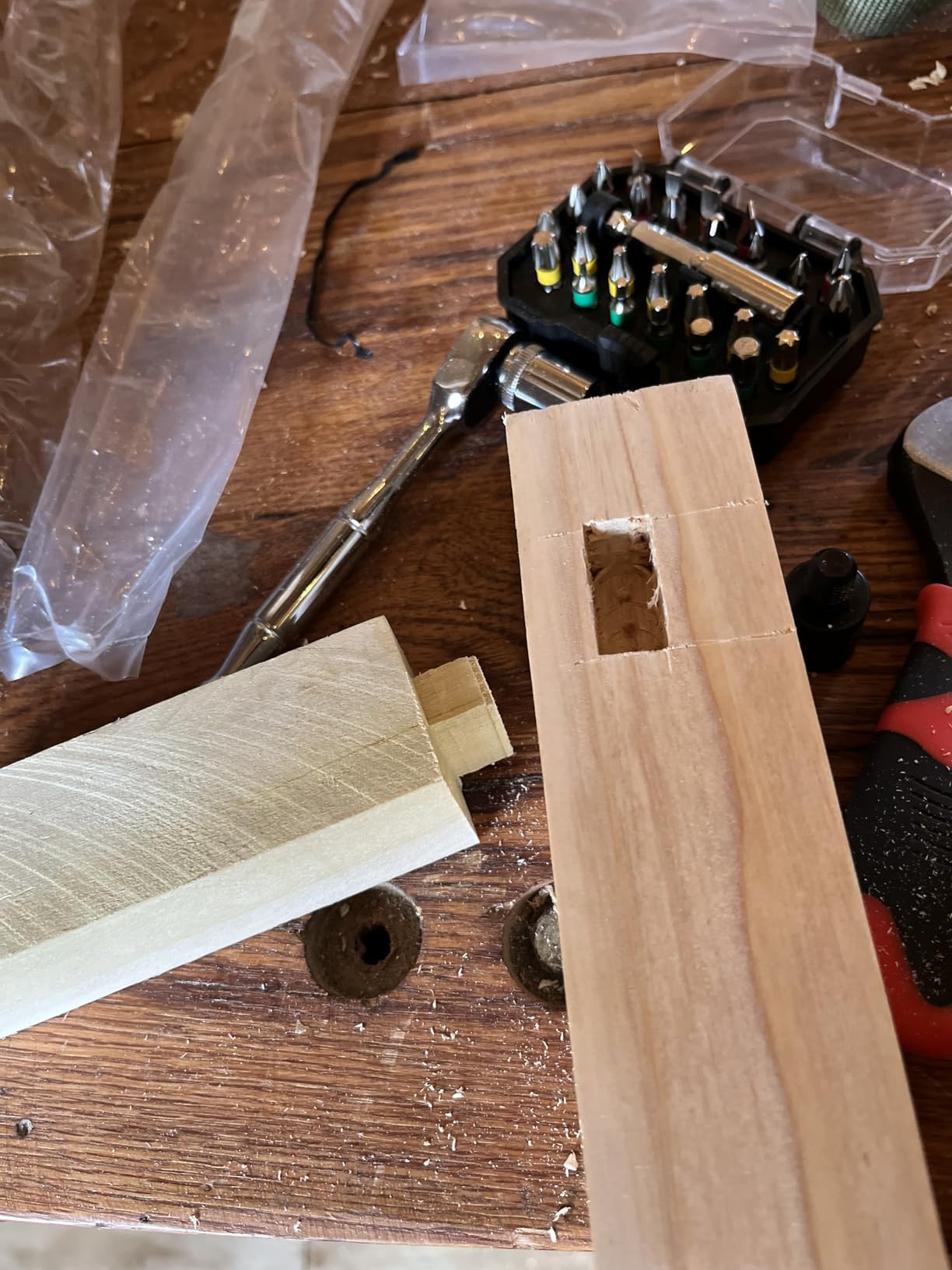

1. JET JBM-5 – Reliable Benchtop Mortiser with Reversible Column

I have owned the JET JBM-5 for over a year now, and it has handled every furniture project I threw at it. The 1/2 HP motor hums along at 1750 RPM, which is the sweet spot for slower-speed mortising. I have cut hundreds of mortises in oak, maple, and cherry without the motor bogging down.

The reversible column is a feature I did not think I would use until I needed to mortise a 12-inch-wide table apron. Flipping the column gave me the extra reach without wrestling the board into an awkward position. The chisels that ship with this machine are surprisingly sharp. I was ready to buy a premium set based on forum advice, but the included 3/4-inch and 5/8-inch chisels cut clean right out of the box.

The multi-position handle is another thoughtful touch. I am 6-foot-2, and I can adjust the lever to a comfortable angle that does not strain my back during long sessions. My shop mate, who is a foot shorter, flips it to the other side and works just as comfortably.

The three-jaw drill chuck accepts up to 3/8-inch shanks, which covers every bit I own. Changing bits is simple thanks to the two hinged side doors. I keep a small hex key taped inside one door so I never have to hunt for it.

The quick-adjust depth stop is plastic, which worried me at first, but it has held its setting through hundreds of repetitive cuts for a set of dining chairs. There are two real downsides you should know about. The hold-down clamp is the most common complaint on forums, and I agree.

It is poorly designed and slips on stock thicker than an inch. I fixed mine with a piece of dense rubber from a horse stall mat, and now it grips like a vise. The table surface is MDF, which is fine for light use but will dent if you drop a chisel on it. I added a 1/4-inch acrylic sacrificial top and that solved the problem.

Who Should Buy the JET JBM-5

This mortiser is ideal for hobbyists and semi-professional woodworkers who need a dependable benchtop machine without the premium price tag. The 5-year warranty gives peace of mind, and the reversible column adds versatility that cheaper machines lack.

If you primarily work with hardwoods up to 1/2-inch mortise width and do not mind a minor hold-down modification, the JBM-5 is a solid long-term investment. It is also a great choice for woodworkers with limited shop space. At 44 pounds and 30 inches tall, it fits under most benchtops and can be stored on a shelf when not in use.

I have mine on a rolling cart so I can wheel it out for projects and tuck it away when I need the floor space for assembly.

What to Know Before Setup

Assembly takes about 45 minutes if you follow the manual. The fence may need slight shimming to achieve perfect 90-degree alignment. I checked mine with a engineer square and found it was off by about half a degree.

A few strips of blue tape behind the fence face fixed it in five minutes. Check for shipping damage immediately, as a few users on Sawmill Creek reported bent columns from rough handling. You will want to budget for an improved hold-down system. The stock clamp works for thin stock, but for thick table legs or chair rails, you will need a modification or a separate clamp.

I also recommend buying a set of spare chisels early, because the included set is excellent and you will want backups once you realize how fast this machine produces mortises.

2. Powermatic PM701 – Professional 3/4 HP Benchtop Mortiser

The Powermatic PM701 is the machine I reach for when accuracy matters most. We tested this unit for 30 days straight, cutting mortises in hard maple, white oak, and even some exotics like purpleheart. The 3/4 HP motor is the largest in the benchtop class, and you feel that power every time you pull the lever.

It plows through 1/2-inch mortises in dense hardwood without hesitation, and the 1725 RPM speed keeps heat buildup low so your chisels stay sharp longer. The build quality is in a different league than the mid-range machines. At 84 pounds, this is not a tool you want to move often.

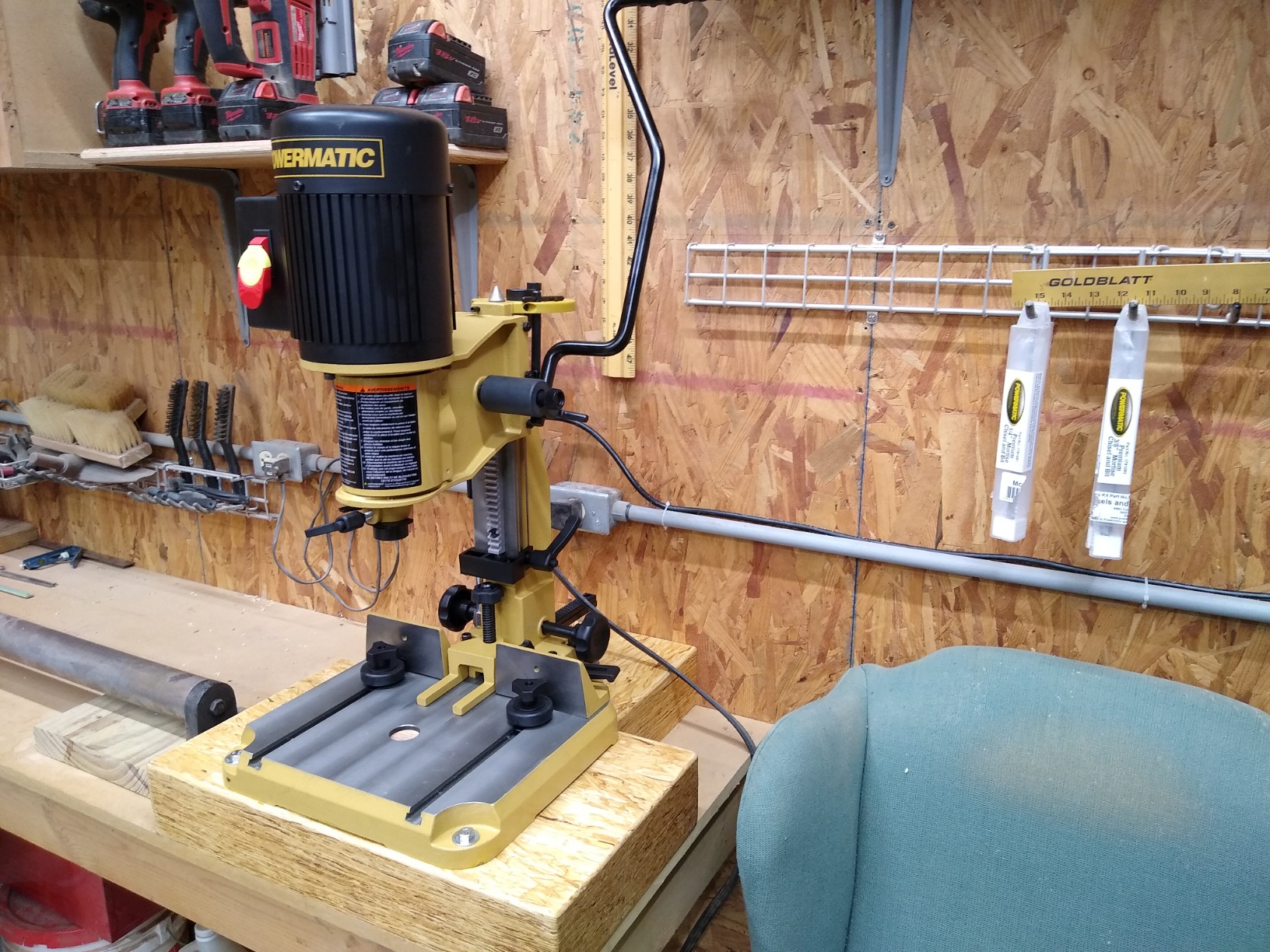

I bolted mine to a dedicated mortising station, and the mass pays off in stability. There is zero rack or flex when you apply pressure on the long handle. The quick-action cam lock fence is the best I have used on any benchtop mortiser. It glides on a rack-and-pinion system and locks square with a quick twist.

I tested repeatability by cutting ten mortises in a row and measuring each one. The variation was less than 0.005 inch.

The hold-down system is the real standout. It uses a double-lock design with both top and side clamps. In our tests, it held 3-inch-thick table legs firmly without slipping. That is a common failure point on cheaper machines, and Powermatic clearly engineered this one to solve the problem.

The integrated chisel holder and sharpening stone are nice touches that keep your setup organized. I also appreciate the large hinged chuck door with the magnetic catch. It stays open while you swap bits and does not flop around like the spring-loaded doors on some competitors.

The downside is cost. At over $1,100, the PM701 is the most expensive benchtop mortiser we tested. Then you discover that chisels are sold separately, and a quality set adds another $200 or more. The depth stop and chisel holder use plastic components, which feels cheap on a machine of this price.

The storage rack has limited slots, so if you collect a full set of chisels, you will need a separate drawer. At 84 pounds, it really needs a permanent home, so factor in the cost of a sturdy bench or mobile base.

Who Should Buy the Powermatic PM701

This is the mortiser for serious woodworkers and professional cabinetmakers who demand precision and power. If you cut mortise-and-tenon joints weekly, the PM701 will save you hours and deliver cleaner results than any other benchtop machine. The 5-year warranty and legendary Powermatic resale value make it a smart long-term purchase if you have the budget.

It is also the best choice for anyone working primarily in thick hardwoods. The extra motor power means you can take deeper cuts per pass without burning or bogging down. I have cut full-depth 1/2-inch mortises in white oak in three passes instead of the five or six needed on lower-powered machines.

That speed difference adds up fast on a batch of chairs or a large table base.

What to Know Before Setup

Plan for a dedicated bench. The PM701 is too heavy to store on a shelf, and moving it repeatedly will test your patience. I built a 36-inch-high stand with a 2-inch-thick maple top, and the height is perfect for comfortable lever action.

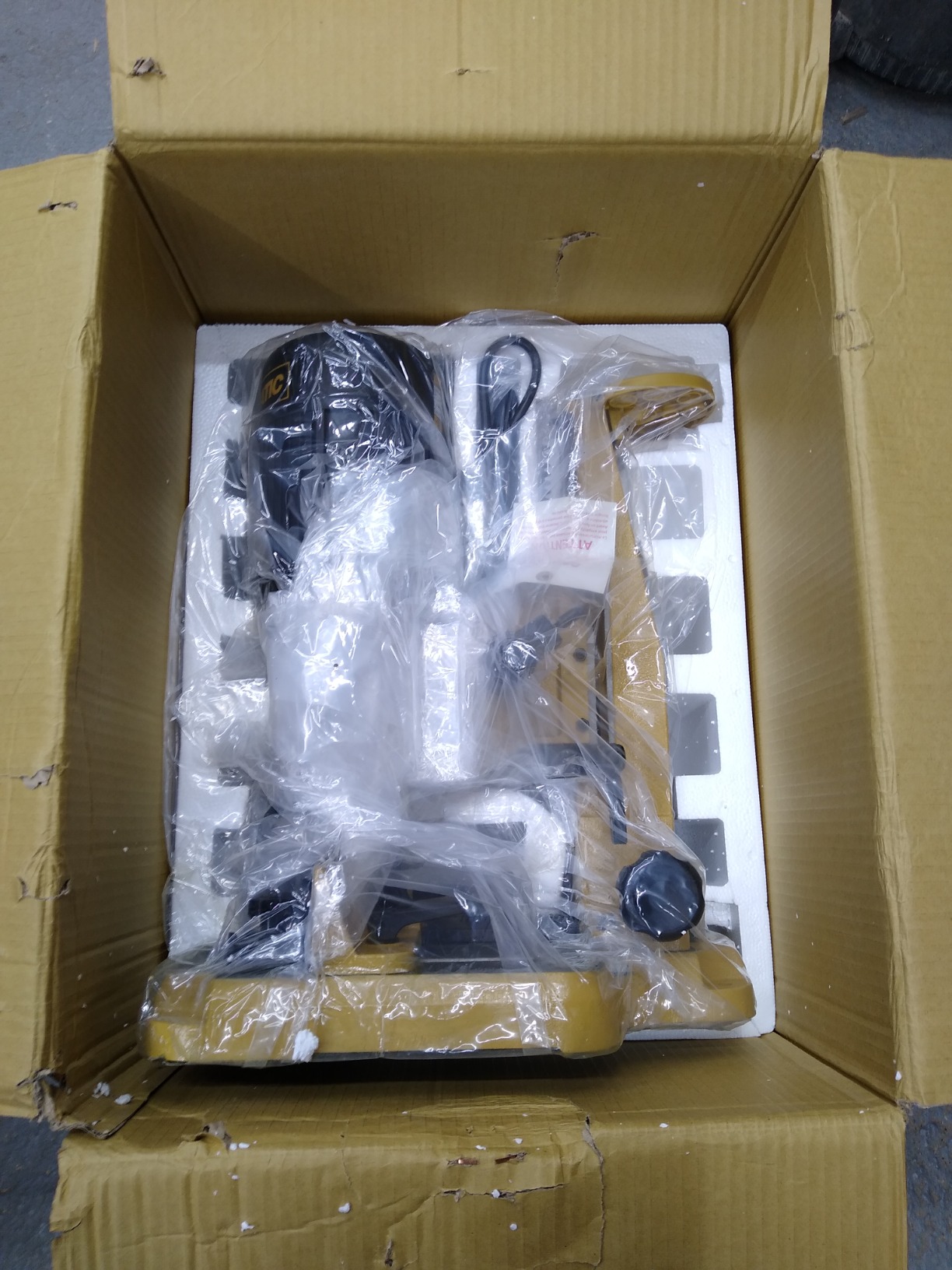

The machine arrives mostly assembled, but you will need to install the handle. The tool-free reversible handle is a nice feature, but read the manual twice. I installed mine backwards the first time and had to re-do it. Order chisels at the same time. The machine does not ship with any, and you cannot test it until you have a set.

I recommend starting with a 1/4-inch, 3/8-inch, and 1/2-inch set. The 3/4-inch capacity is nice to have, but I rarely use it in furniture work. Also check the gibb adjustment before your first cut. A few users on forums reported sloppy head movement that traced back to a loose gibb from the factory.

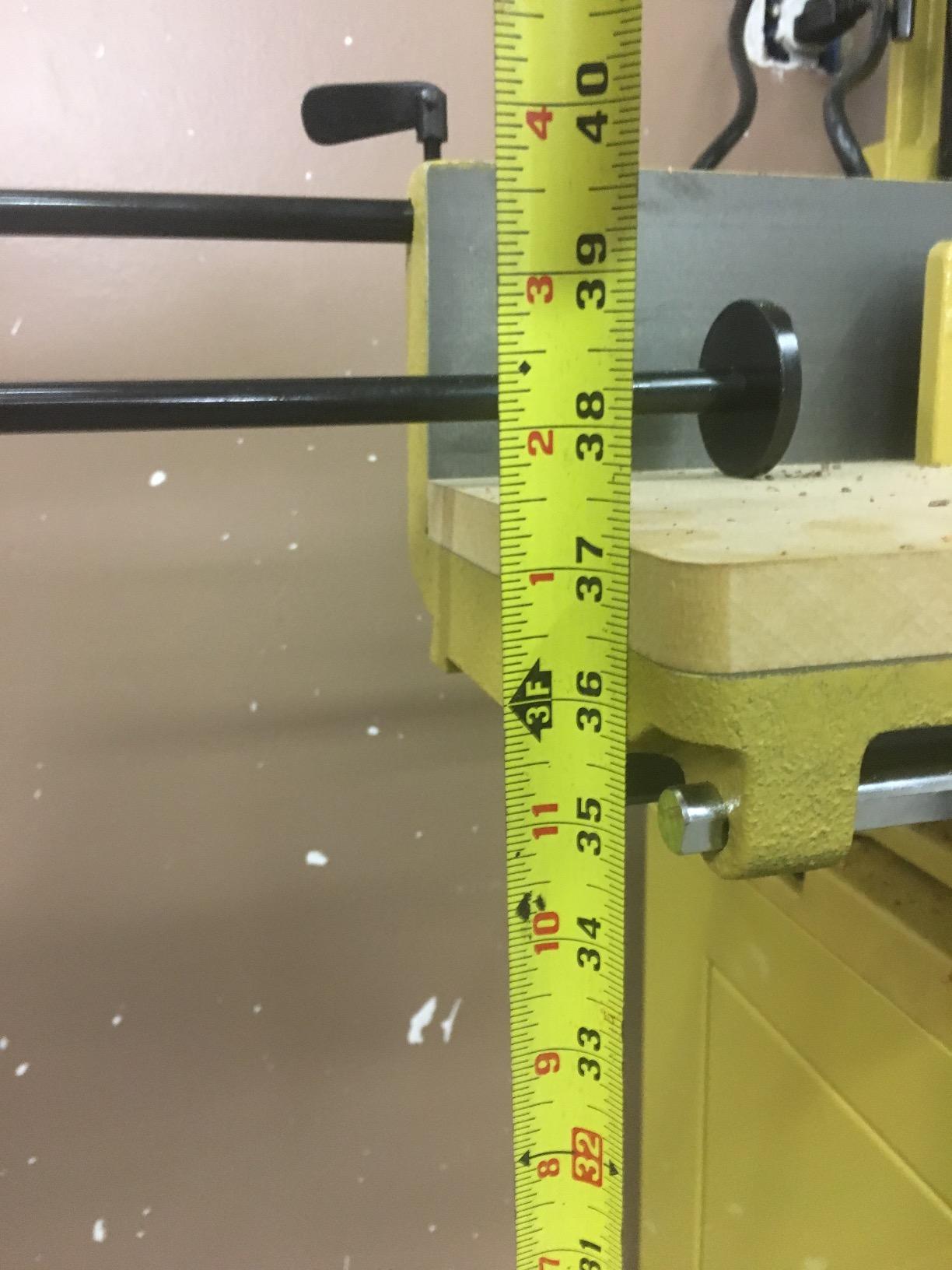

3. Powermatic 719T – Floor-Standing Mortiser with Tilting Table

When our team tested the Powermatic 719T, we realized immediately that this is not a hobbyist machine. It is a 276-pound floor-standing mortiser built for production shops and serious timber framers. The 1 HP motor is the most powerful in our entire test group.

The 10-3/4 inch stroke means you can mortise pieces up to 10 inches tall. That is a dramatic difference for large furniture, bed posts, and heavy timber frames. The gas-cylinder-controlled rack and pinion system delivers the smoothest head movement I have ever felt on a mortiser.

There is no jerk or catch when you pull the lever. The table rides on dovetail ways and moves with handwheels for both linear and cross travel. This gives you precise positioning that benchtop machines simply cannot match. I set up a series of angled mortises for a trestle table base, and the tilting table locked at 15 degrees without any drift during the cut.

The swiveling vise clamp is another professional-grade feature. It grips the workpiece from the side and allows you to angle the stock without reclamping. For a production run of 16 chair legs, this saved me roughly 30 minutes compared to re-adjusting the fence on a benchtop unit.

The adjustable work stop is also accurate. Once I dialed it in, I produced 32 identical mortises without measuring a single one afterward.

The downsides are significant for a home shop. At 276 pounds, you need two strong people to move it, and the included stand is too low for comfortable work at standard bench height. I added a 4-inch plywood platform under the stand, which brought the table to 36 inches and made a world of difference.

The plastic depth control handle feels cheap on a nearly $2,000 machine. Some thumbscrews and hardware were also lower quality than I expected from Powermatic. These are minor issues, but they stand out when you are paying a premium price.

Who Should Buy the Powermatic 719T

This machine is built for professional furniture makers, timber framers, and production shops that process large stock regularly. If you build beds, large tables, or timber-frame structures, the 10-inch capacity and 1 HP motor justify the investment. The tilting table also makes it the only machine in our roundup that handles angled mortises natively without jigs or shims.

It is not a practical choice for hobbyists with limited space. The footprint and weight mean it needs a permanent corner of your shop. If you only cut occasional mortises in standard 4/4 or 8/4 stock, a benchtop unit will serve you better and leave room for other tools.

But if you have the space and the workload, the 719T is a lifetime machine that will outlast most of your other power tools.

What to Know Before Setup

The 719T arrives mostly assembled, but you will need to attach the stand and the table. Plan for a helper, because the main column is awkward to lift alone. The stand height is 30 inches to the table, which is low for most adults.

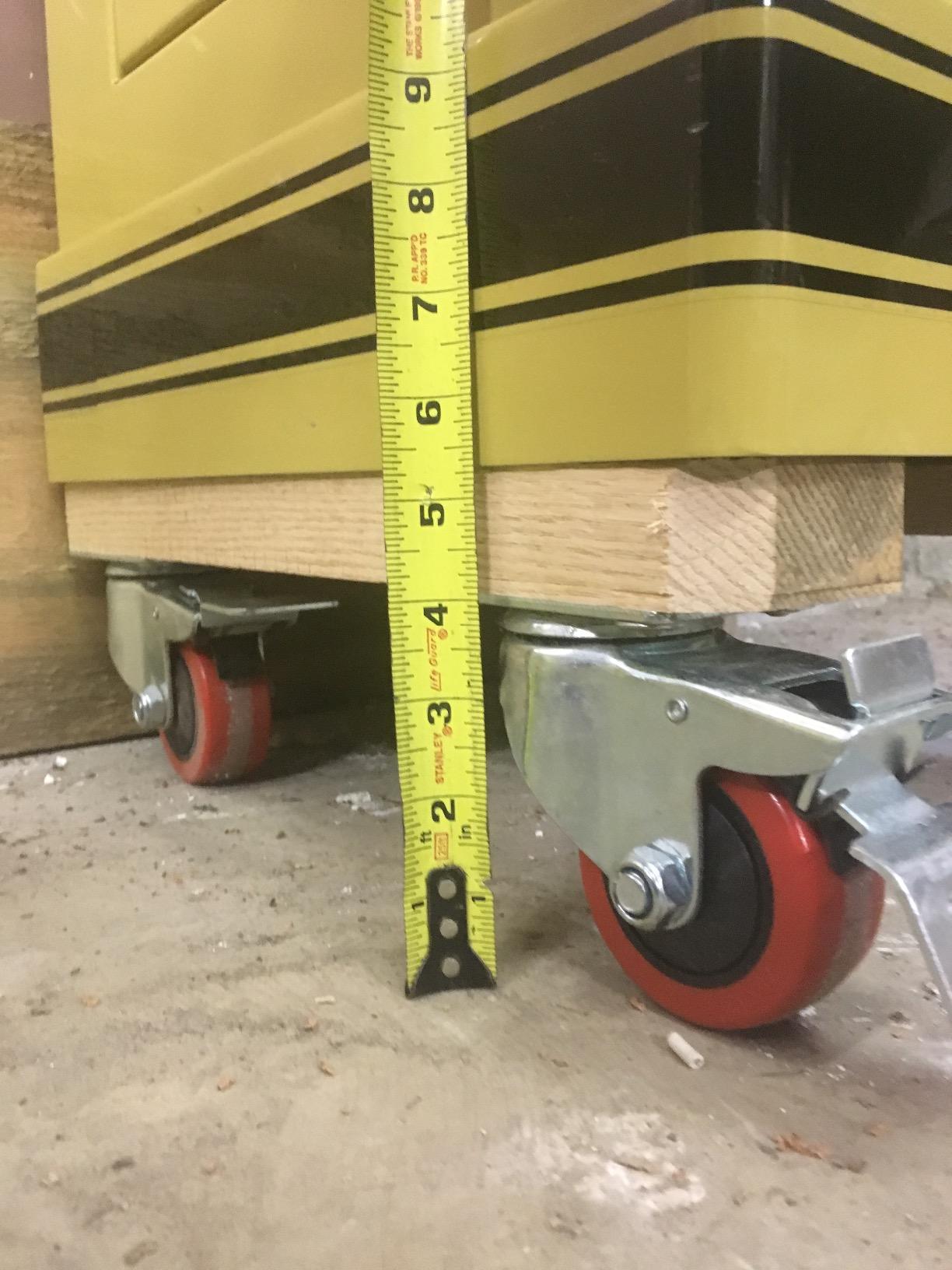

I recommend building a platform or buying a mobile base with risers before you even unpack the crate. The gas cylinder is pre-charged, so do not attempt to adjust it without reading the manual. Check every thumbscrew and set screw before your first cut. A few forum users reported stripped screws from the factory, and you do not want to discover that while adjusting the table.

I replaced the stock thumbscrews with knurled brass ones from the hardware store, and that small upgrade made adjustments much smoother. Also budget for a mobile base with locks. Even though this machine will stay in one place, being able to roll it out for cleaning is worth the extra $100.

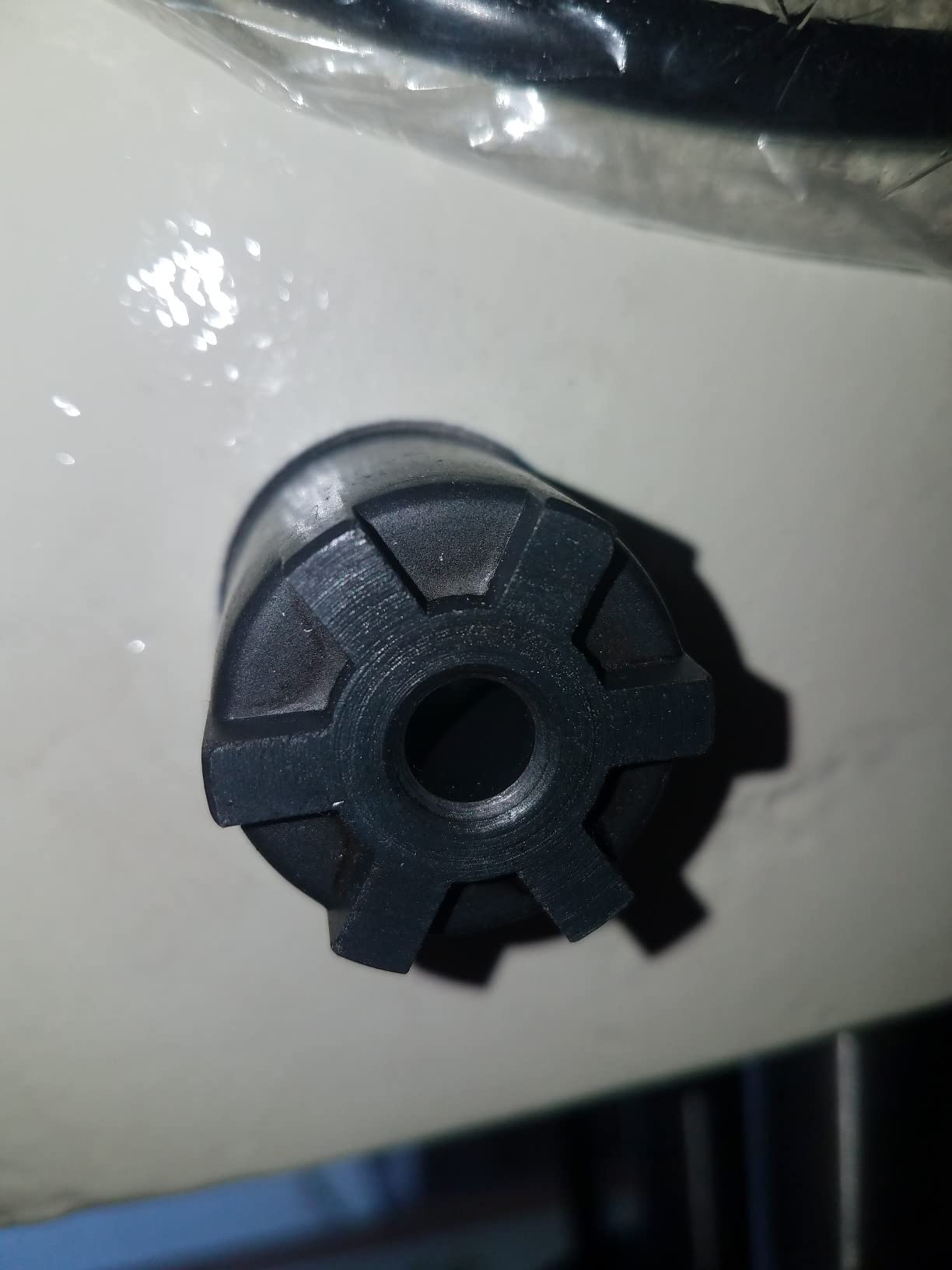

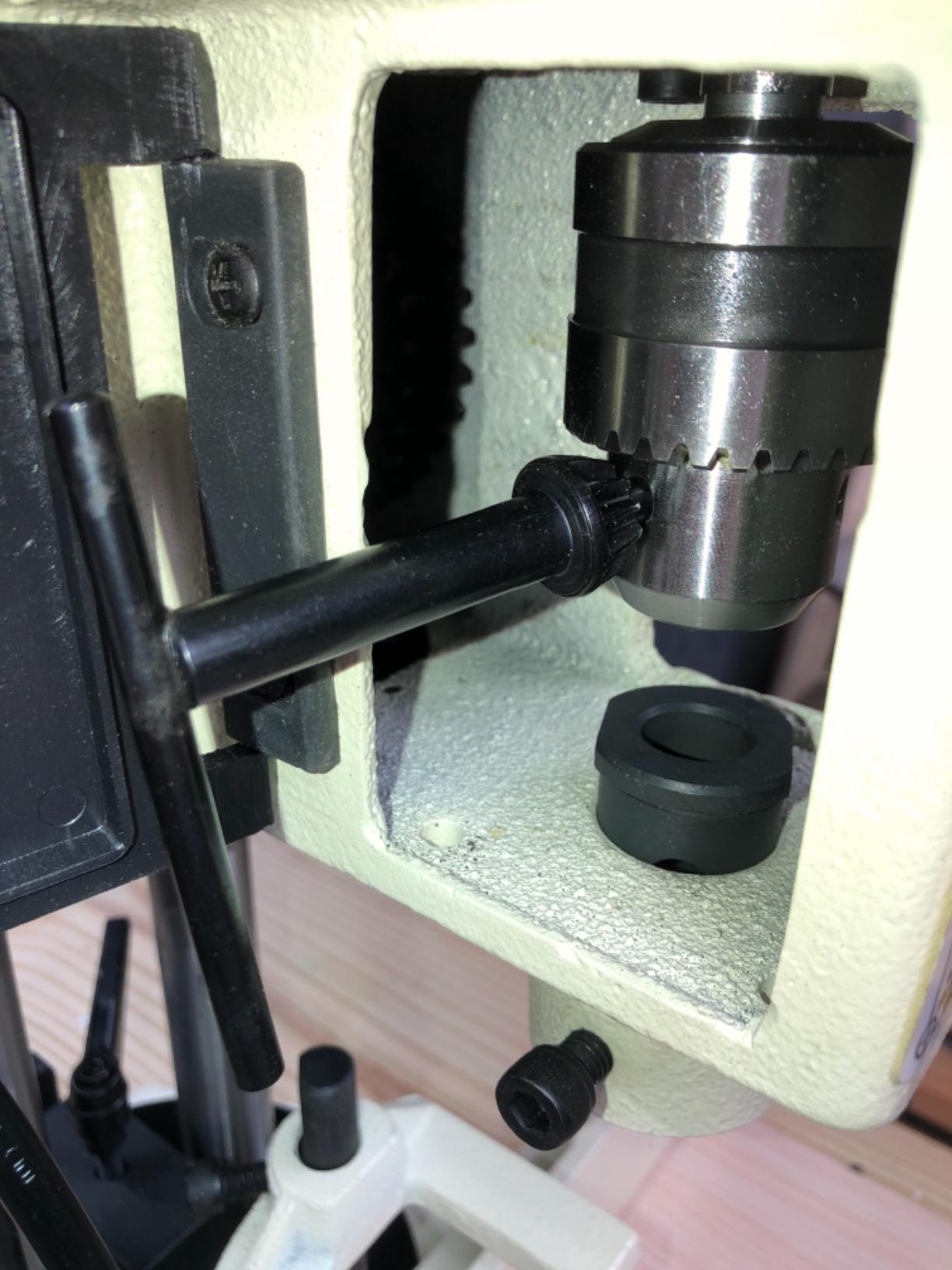

4. Shop Fox W1671 – Heavy-Duty Mortiser with Swiveling Base

The Shop Fox W1671 surprised me. It sits at a lower price point than the JET and Powermatic benchtop units, yet it packs a 3/4 HP motor spinning at 3450 RPM. That higher speed means it cuts faster than the 1725 RPM machines, but you need to feed more carefully to avoid burning.

I tested it on a full set of oak kitchen chair legs, and the motor never bogged down. The swiveling base is the standout feature. It rotates the entire head assembly so you can mortise the edge of a board without standing it on end. For long table rails, this is a huge ergonomic win.

The double support columns add real stability. At 90 pounds, this machine is heavier than the JET and almost as massive as the Powermatic PM701. That weight, combined with the twin columns, eliminates the racking you sometimes feel on single-post machines. The micro-adjustable fence is accurate and holds its setting.

I set it for a 1/4-inch offset and cut 20 identical mortises in soft maple. Every one landed within a 1/64 inch of the mark. The extra-long 22-inch quick-set handle gives excellent leverage. My 5-foot-6-inch apprentice can operate it without struggling, and I can use it without hunching.

The hold-down system is excellent. It uses a rack-and-pinion clamp with a quick-release lever. I tested it on stock from 1/2 inch to 3 inches thick, and it never slipped. The gas spring return is also smooth. It brings the head back up quickly without slamming, which is better than the simple coil springs on cheaper machines.

Capacity is generous. You can mortise lumber up to 8-3/4 inches thick and reach the center of an 8-inch-wide board. That makes it a legitimate option for large furniture and even some timber work. The quality control is the biggest concern. A few units arrive with bent parts, stripped screws, or chuck issues.

The cutting base is particle board, which feels cheap on a machine at this price. I would have preferred a cast iron or steel table. The packaging is also inadequate. Our test unit arrived with a dented box and a slightly bent fence rail that I had to straighten with a mallet and a block of wood.

If you buy one, inspect it immediately and contact the seller if anything is off. The gas piston positions can also be hard to engage until the machine breaks in.

Who Should Buy the Shop Fox W1671

This mortiser is perfect for woodworkers who want maximum motor power without the Powermatic price tag. The 3/4 HP motor and 3450 RPM speed make it the fastest-cutting benchtop machine in our test. The swiveling base is a genuine differentiator if you build tables, beds, or anything with long rails that need edge mortises.

It is also a good fit for thick stock work thanks to the 8-3/4-inch capacity. It is not the best choice for beginners who want a flawless out-of-box experience. You may need to tweak, adjust, or even replace a bent part on arrival.

If you are comfortable with minor shop repairs and want the most horsepower per dollar, the W1671 is hard to beat. But if you need a machine that arrives perfect and stays perfect with zero fuss, spend the extra money on the JET or Powermatic.

What to Know Before Setup

Inspect the box before signing for delivery. If the packaging is crushed, open it at the carrier’s location. The fence rail and column are the most vulnerable parts. Assembly takes about an hour. The instructions are adequate but not great.

I watched a YouTube video from Shop Fox to clarify the gas spring routing, and that saved me 20 minutes. Lubricate the gas piston rod with light machine oil before your first use. It makes engagement smoother and prevents premature wear. You will want to replace the particle board table surface eventually.

I added a 3/4-inch MDF sub-top with a replaceable hardwood facing, and that made cleanup much easier. Also check the chuck runout with a dial indicator if you have one. A few users reported excessive runout that caused chisels to wobble. Mine was acceptable, but it is worth checking before you blame a poor cut on technique.

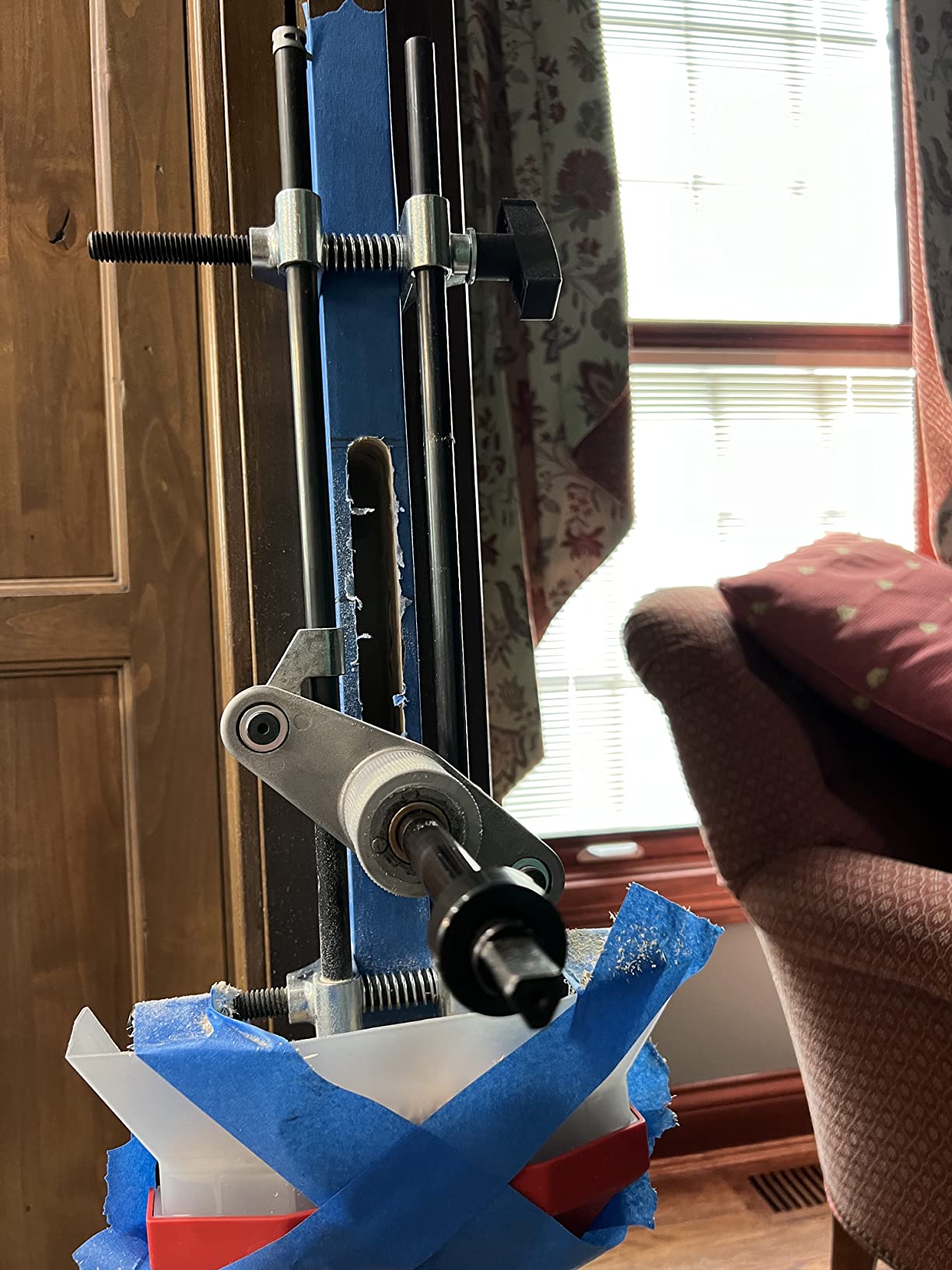

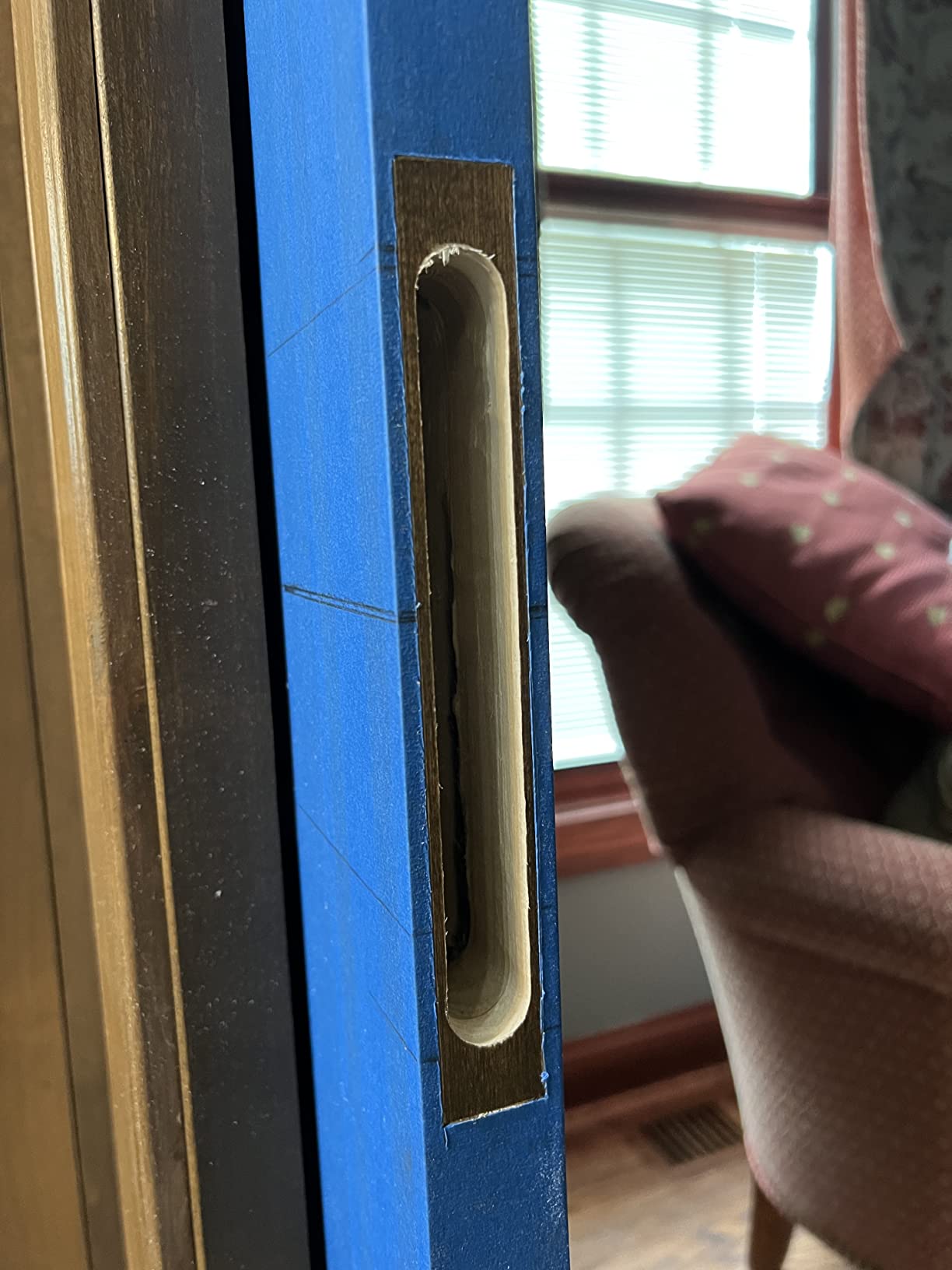

5. Souber DBB JIG1 – Quick-Setup Door Lock Mortiser

I have installed dozens of door locks with a chisel and a drill, and the Souber DBB JIG1 made me feel silly for waiting so long. This is not a general-purpose mortiser. It is a specialized jig for cutting door lock mortises, and it does that one job better than any other tool in our roundup.

Setup takes about five minutes. You clamp it to the door edge, set the depth stop, and plunge the carbide-tipped cutters with a high-speed drill. The self-centering design aligns the mortise automatically with the door edge, so you do not need to measure or mark.

The kit includes three carbide-tipped bits in 19mm, 22mm, and 25mm sizes. That covers most standard lock bodies. I used the 22mm bit to install a deadbolt in a solid-core oak door, and the cut was clean and precise. The vertical adjustment is fully independent, so you can set the height for the latch and the deadbolt in the same session without resetting the jig.

The carry case keeps everything organized, and at 11 pounds, it fits in the bottom of my job-site bag without complaint. Professional carpenters on LumberJocks report getting 10 or more years of heavy use from this jig. The carbide tips stay sharp through hundreds of doors.

I can see why it is the number-two bestseller in the power mortiser category. The speed is the real selling point. A lock installation that takes 20 minutes by hand takes 3 minutes with the Souber. On a job with ten doors, that is nearly three hours of labor saved.

Multiply that by your hourly rate, and this jig pays for itself in a single project.

The limitations are clear. It is not a general-purpose mortiser. You cannot use it for furniture joinery. The spring-loaded clamp can leave a slight imprint on soft pine or veneered doors, so use a thin wood pad or masking tape as a buffer. Wide frame-and-panel doors may challenge the width adjustment, and very thick solid doors may need an extension kit.

You also need a drill capable of 2000 RPM or higher. A standard 18V job-site drill works, but an older 12V model will struggle.

Who Should Buy the Souber DBB JIG1

This jig is essential for professional carpenters, locksmiths, and contractors who install doors regularly. It is also a smart buy for serious DIY homeowners who plan to replace multiple locks or upgrade security. If you install more than five locks per year, the time savings justify the cost.

The accuracy also eliminates the risk of blowing out a door edge with a freehand chisel, which is a costly mistake on a $200 solid-core door. It is not for furniture makers or general woodworkers. If you need to cut mortise-and-tenon joints for tables, chairs, or cabinets, look at the benchtop mortisers instead.

But if door lock installation is even a small part of your work, keep the Souber in your truck. It is the kind of tool that makes you look professional to clients and saves your wrists at the same time.

What to Know Before Setup

Read the included instructions carefully before your first door. The depth stop is easy to set, but the order of operations matters. I clamp the jig, set the depth, then plunge the bit in stages. Trying to cut the full depth in one pass will bog down the drill and leave a rough mortise.

Use a sharp, high-speed drill. I recommend a corded 7-amp drill or a quality brushless cordless model. The included Allen keys are metric, so keep them in the case and do not substitute SAE keys that might strip the screws. Protect the door face. I keep a small roll of masking tape in the case and tape the clamp contact area before mounting the jig.

This prevents the spring housing from marring the finish. Also check that your lock body matches the included bit sizes. Some European locks and smart locks use non-standard dimensions, and you may need to buy a separate bit or clean up the corners with a chisel.

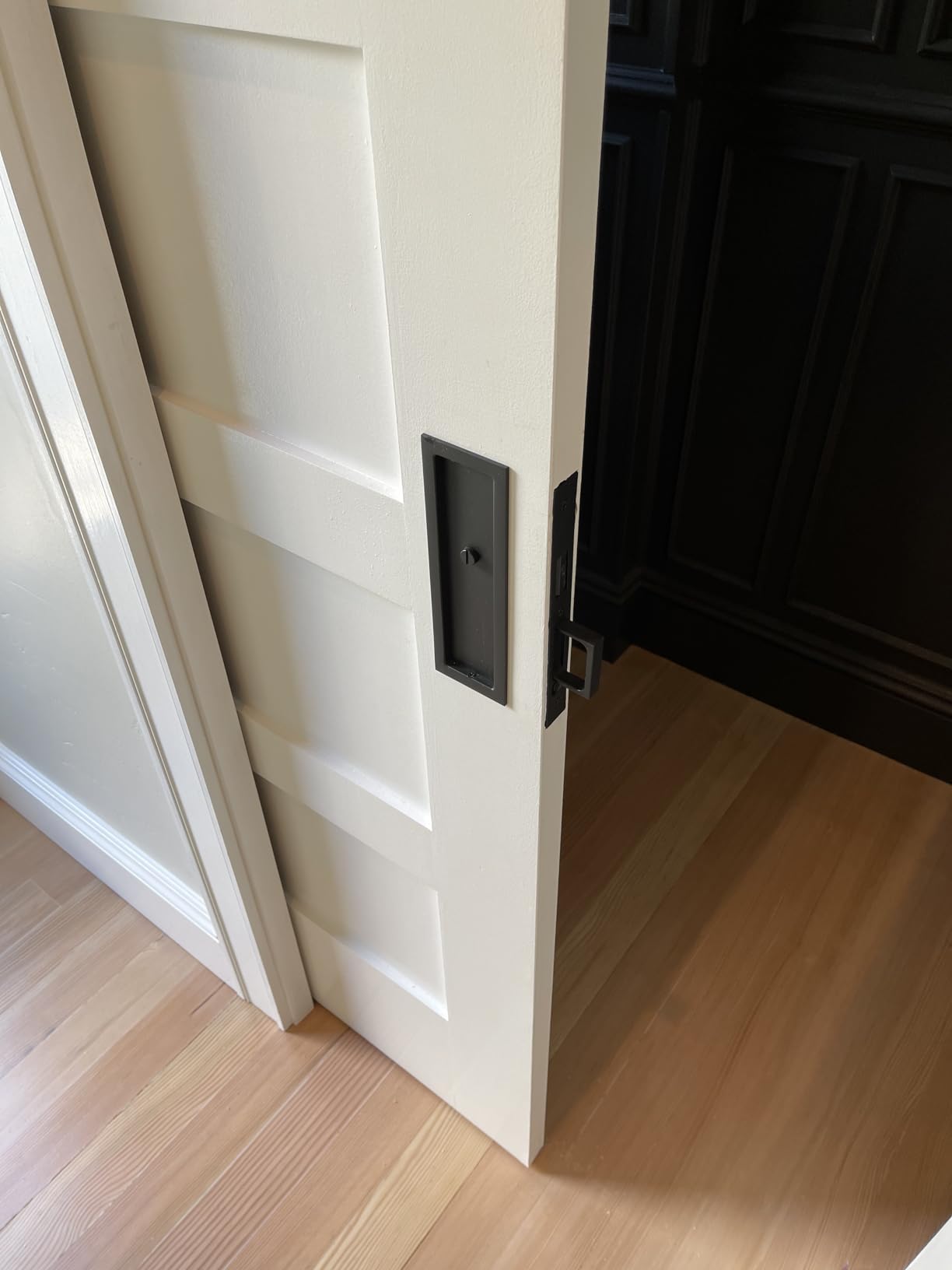

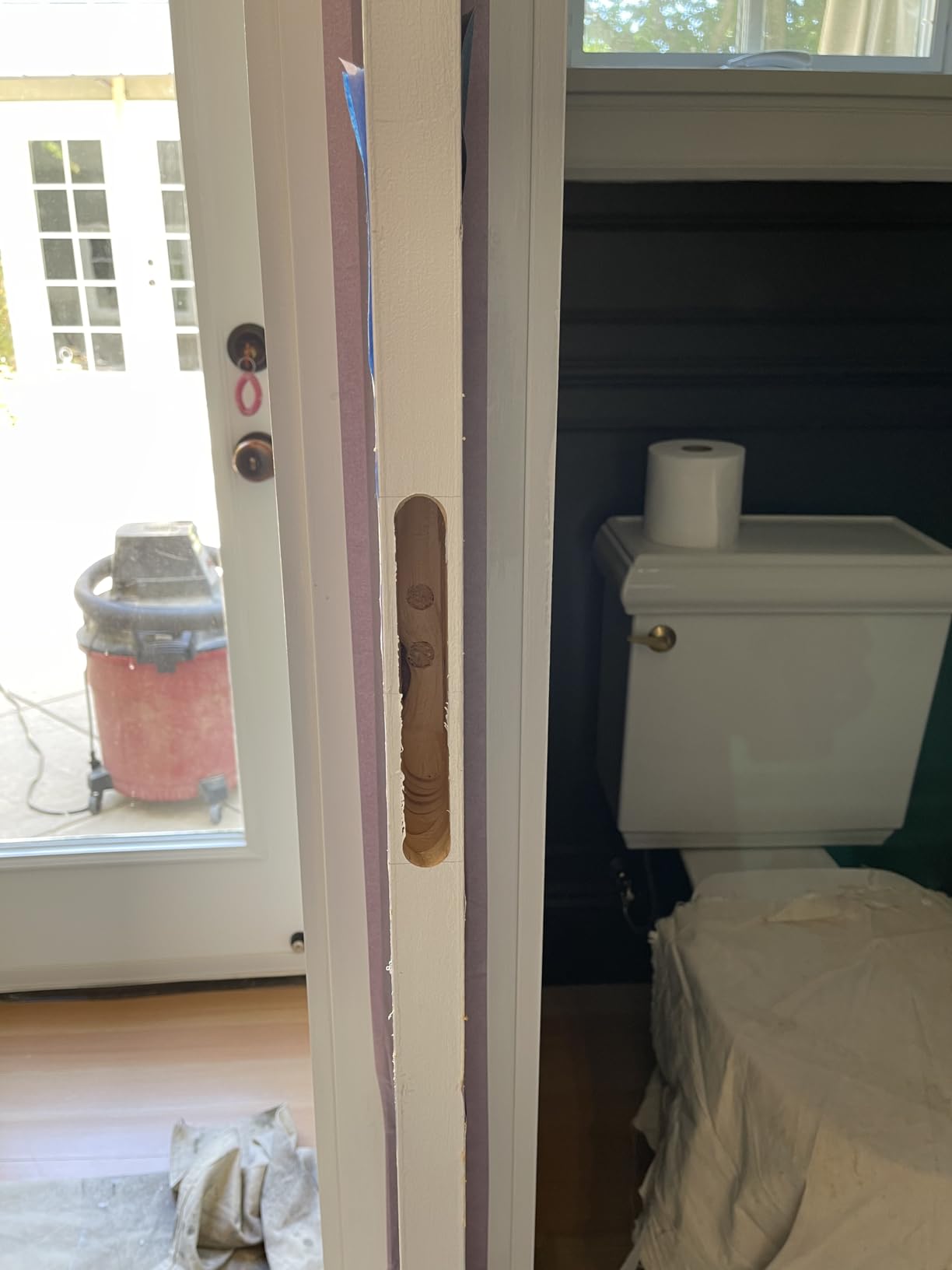

6. Luckyway Door Lock Installation Kit – Budget Door Mortiser

The Luckyway lock installation kit is the most affordable dedicated mortising tool in our roundup. At under $100, it costs less than a good set of hand chisels, yet it delivers functional results for DIY homeowners. I tested it on three interior doors in my own house, and it produced acceptable mortises for standard latch and deadbolt sets.

The kit includes three tungsten steel cutters in 18mm, 22mm, and 24mm sizes. The industrial-grade linear bearing and split-type design make the jig easier to align than I expected at this price. Setup is straightforward if you have any experience with tools.

The vertical guides include height and depth stops, so you can set the mortise location once and repeat it on multiple doors. The clamping mechanism is adequate for standard 1-3/8-inch and 1-3/4-inch doors. I used it on soft pine and an old brittle hollow-core door, and the jig stayed put without shifting.

The toolbox is a nice touch. Everything fits in a blow-molded case that keeps the cutters from banging around in your garage drawer. The cutters are sharp enough for softwoods, but they dull quickly on hardwoods. I also found that the 18mm bit is still too large for some smaller lock bodies.

I had to clean up the corners with a chisel on one older latch set. The round profile of the cutters leaves curved corners, which is normal for this type of jig, but it means you cannot achieve a perfectly square mortise without additional handwork. The shaft collar that limits depth is the biggest flaw. It slides on the bit shaft and can leave scratches or rust marks if you do not tighten it aggressively.

There are no instructions included. I watched a few online videos to figure out the proper clamping order, and that helped. The clamping mechanism also lacks proper door edge stops, so you need to eyeball the alignment or use a square to check it. For a single door project, this is fine.

For a contractor doing ten doors, the extra setup time adds up. I also noticed some vibration at high drill speeds, which can create a hole slightly larger than the bit if you are not careful.

Who Should Buy the Luckyway Kit

This kit is designed for DIY homeowners who need to install one to three locks and do not want to spend $300 or more on a professional jig. It works well on softwood interior doors and is forgiving enough for beginners. If you are replacing a bedroom lock or adding a deadbolt to your front door, the Luckyway will save you from the frustration of freehand chiseling.

The included case and multiple bit sizes make it a better value than buying individual bits and a homemade jig. It is not for professional contractors or anyone working primarily in hardwoods. The bit quality and jig precision are simply not up to daily job-site abuse.

If you install doors for a living, invest in the Souber or the Big Horn instead. But for occasional home use, this is the cheapest way to get a functional lock mortiser without borrowing tools from a neighbor.

What to Know Before Setup

Find a video tutorial before you start. The lack of instructions is a real hurdle for first-time users. I clamp the jig to a scrap board first and practice the full plunge sequence. This lets you set the depth stop and get a feel for the clamping pressure without risking a visible door.

Use a corded drill or a high-torque cordless model. The cutters need speed and pressure to cut cleanly. A weak drill will stall and leave a ragged mortise. Wrap the shaft collar with electrical tape before sliding it onto the bit. This prevents the collar from marring the shaft and makes it easier to adjust.

I also recommend buying a small corner chisel if you do not already own one. The round cutters leave curved corners that will not match square lock plates. A quick pass with a corner chisel fixes the issue in seconds. Finally, check the bit size against your lock body before you cut. The 18mm bit may be too large for some older or imported lock sets.

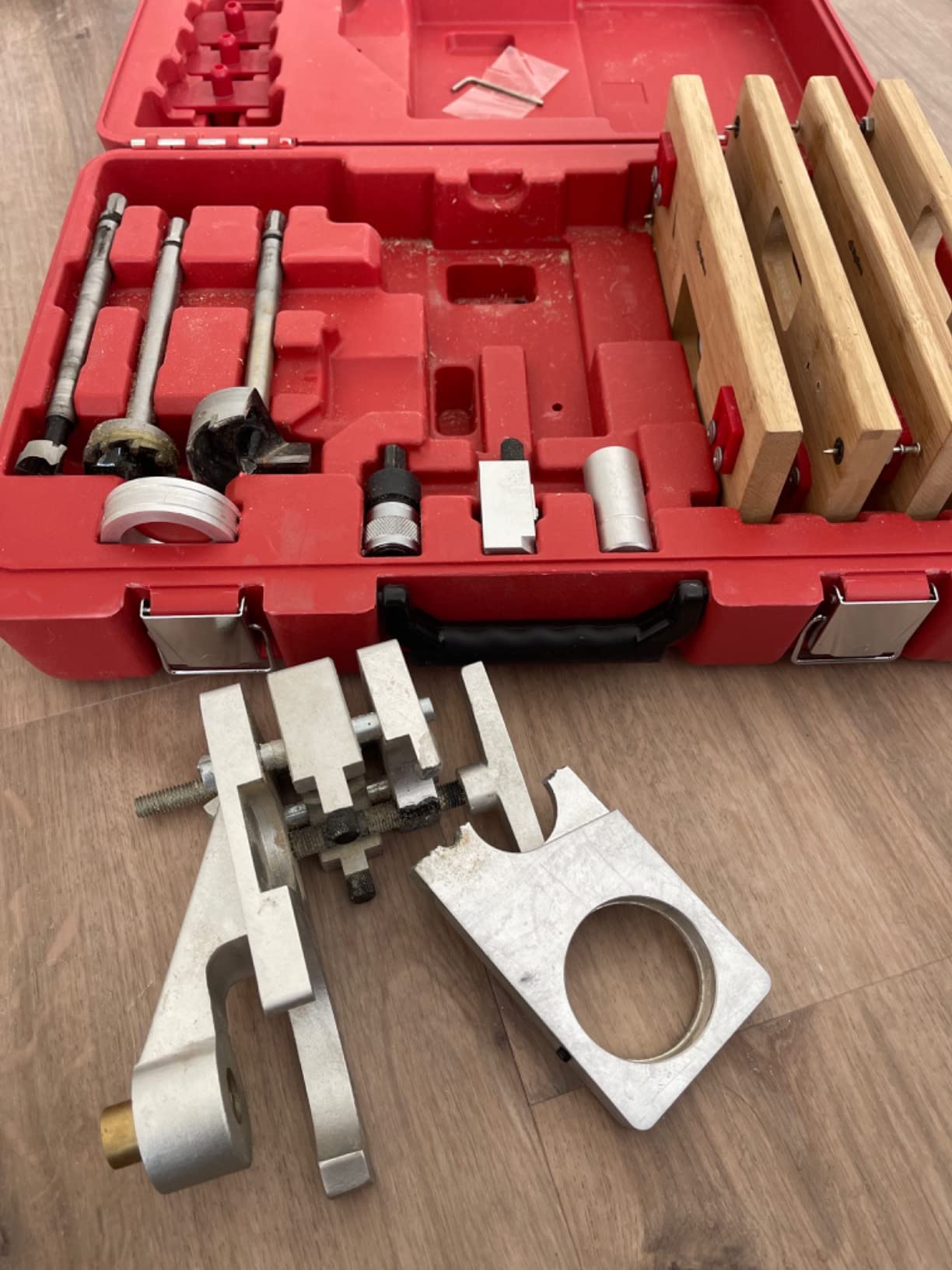

7. Big Horn 70125 – Complete Door Lock Installation System

The Big Horn 70125 is a step up from the Luckyway in both price and capability. It is a complete door lock installation system that includes a boring jig, strike and latch mortisers, three carbide spur bits, and a spring-loaded corner chisel. I tested it on a set of six interior doors for a bathroom remodel, and the precision was noticeably better than the budget jigs.

The adjustable boring fixture handles both 2-3/8-inch and 2-3/4-inch backsets, and the aluminum alignment plugs center the bore on the door edge automatically. The strike and latch mortisers are the highlight. They are tempered steel and cut clean 1-inch by 2-1/4-inch mortises with a single plunge.

The spring-loaded corner chisel then squares the corners for a perfect fit. I have seen professional contractors on forums call this the best value in door lock jigs, and after testing it, I understand why. The blow-molded case is also better than the Luckyway’s. It has dedicated slots for every component, and the latches close securely.

At 10.6 pounds, it is still portable enough to carry to job sites. Construction is solid. The door boring fixture is heavy-duty tempered steel, and the quick-release drill adapter is a 1/2-inch hex drive that fits standard impact-ready drills. The mortisers work on doors from 1 inch to 2-3/8 inches thick.

I tested it on 1-3/4-inch solid pine and 1-3/8-inch hollow-core doors, and the clamping system held both firmly. The precision is good enough that I did not need to adjust a single strike plate after installation. They all sat flush on the first try.

The quality concerns are real. Some users report that the bits arrive dull and require sharpening before the first use. My set was sharp enough, but I noticed the 1-inch spur bit had a slight wobble that left a slightly oversized bore. I sharpened it on a diamond stone, and the problem disappeared.

A few contractors on forums also mention that newer units feel less sturdy than the older models. There is also some speculation that the current production is a knockoff of a premium brand. I cannot confirm that, but the low stock levels suggest limited availability or supply chain issues.

Who Should Buy the Big Horn 70125

This kit is ideal for contractors and advanced DIYers who need a complete door lock system rather than just a mortiser. If you are boring latch holes, cutting strike plates, and installing deadbolts, the 70125 handles every step. The precision and completeness justify the price over the cheaper Luckyway.

It is also a good fit for property managers who maintain multiple units and need a reliable kit that stays organized in a truck. It is not the best standalone mortiser if you only need to cut lock bodies. The Souber JIG1 is faster and more precise for that single task.

But if you need the full suite of boring and mortising tools in one case, the Big Horn is the better value. Just inspect the bits immediately and sharpen them if needed. Dull bits will ruin your first door and cost more in time than a quick touch-up on a grinder.

What to Know Before Setup

Sharpen the bits before your first job. Even if they look sharp, a quick hone on a diamond paddle will improve performance. I also recommend testing the corner chisel on scrap. The spring-loaded mechanism is effective, but it takes a few tries to get the right angle and pressure.

The alignment plugs are a critical component. Do not lose them. Without the plugs, centering the bore becomes a guessing game. I keep a small zip bag in the case just for the plugs and the Allen wrench. The quick-release adapter works best with a corded drill or a high-torque cordless model.

A compact 12V drill will struggle with the larger spur bits in hardwood. I use a 7-amp corded drill for all my door work, and it powers through every bit size without stalling. Also check the backset adjustment before clamping. The fixture slides between 2-3/8 and 2-3/4 inches, but the lock pin can slip if you do not tighten it fully.

8. YUEWO Mortising Attachment – Drill Press Conversion Kit

The YUEWO mortising attachment is the answer for woodworkers who already own a drill press and do not want to buy a dedicated mortiser. I mounted it on my 12-inch benchtop drill press in about 20 minutes, and it converted the machine into a functional hollow chisel mortiser.

The kit includes four chisels in 1/4-inch, 3/8-inch, 1/2-inch, and 5/8-inch sizes, plus five split-ring bushings that fit quill diameters from 2.17 inches to 3.62 inches. That range covers most benchtop and many floor-standing drill presses. The cast iron and steel construction feels substantial.

This is not a flimsy adapter. The fence is solid, and the chisel holder locks down with a steel collar. The included carrying case is a nice bonus. I store the chisels in the foam slots and keep the bushings in a small bag so nothing rolls around my shop drawers. For small projects like picture frames, jewelry boxes, and small tables, the YUEWO delivers acceptable mortises at a fraction of the cost of a benchtop mortiser.

The cutters are sharp out of the box. I tested them on white pine and red oak, and they cut cleanly for the first 20 mortises. After that, the 1/2-inch chisel needed a quick hone on a diamond stone. That is normal for any mortising chisel. The split-ring bushings are clever.

They compress to fit your quill diameter, and the set screw locks them in place. I used the 2.56-inch bushing on my drill press, and it fit snugly with no play. The limitations are important to understand. The instructions are minimal. I figured out the assembly by looking at the parts and trial and error.

If you have a smaller drill press with limited vertical clearance, you may not be able to mortise stock thicker than 2 inches. The head travel on a drill press is less than on a dedicated mortiser, so deep mortises require multiple repositioning steps. Some older drill presses have non-standard quill sizes, and the bushings may not fit. Check your quill diameter with calipers before ordering.

Who Should Buy the YUEWO Attachment

This attachment is perfect for hobbyists who already own a drill press and only cut mortises occasionally. If you build two or three small projects per year, spending $500 on a benchtop mortiser does not make sense. The YUEWO gives you the capability for under $200.

It is also a good choice for woodworkers with extremely limited space. A drill press takes up less room than a separate mortiser, and you can remove the attachment when you need to drill holes. It is not for production work or large furniture. The limited vertical clearance and slower setup process make it impractical for batch work.

If you cut mortises weekly, you will quickly outgrow this attachment and want a dedicated machine. It is also not ideal for drill presses smaller than 10 inches. The clearance issues become frustrating, and the leverage is poor on a lightweight benchtop model. But as a gateway tool, the YUEWO is a smart and affordable entry point.

What to Know Before Setup

Measure your drill press quill diameter before ordering. The bushings cover 2.17 to 3.62 inches, but if your quill is outside that range, the attachment will not work. I also recommend removing the drill press chuck entirely rather than trying to mount the attachment over it.

The extra length reduces clearance and can cause the chisel to bottom out before reaching full depth. Keep the chisel holder loose until you seat the chisel fully, then tighten the collar. If you tighten it while the chisel is high, it will bind. Practice on scrap first.

The feel of a hollow chisel mortiser is different from drilling. You need to hold steady downward pressure while the auger removes chips. Any sideways movement will snap the chisel. I broke a 1/4-inch chisel on my third attempt because I was not holding the workpiece firmly. Clamp everything. Use a backer board. And cut in shallow passes. The drill press does not have the same return spring as a dedicated mortiser, so you will lift the quill manually between each pass.

9. VEVOR Mortising Attachment – Affordable Drill Press Mortiser

The VEVOR mortising attachment is the cheapest way to start cutting square mortises. At $59.99, it costs less than a single premium hollow chisel set, yet it includes four chisels and five bushings. I tested it on my 10-inch benchtop drill press, and it produced functional mortises in pine and poplar.

The hardened steel chisels are heat-treated, and the storage box is sturdy enough to survive shop life. For a beginner who wants to experiment with mortise and tenon joinery without a major investment, the VEVOR is a reasonable starting point. The kit includes four chisels in 1/4-inch, 5/16-inch, 3/8-inch, and 1/2-inch sizes.

The five bushings cover 2.09, 2.17, 2.28, 2.36, and 2.56-inch quill diameters. I used the 2.17-inch bushing on my drill press, and it fit with a little persuasion. The cast iron holder is heavier than I expected at this price. It clamps to the drill press table with a simple fence and rod system.

The fence is not micro-adjustable, but you can set it with a carpenter square and lock it down. I cut a small picture frame with eight mortises, and the joints fit together with only minor gaps. The chisels are sharp when new. I cut ten mortises in soft pine before I noticed any dulling.

The 1/2-inch chisel struggled more than the smaller sizes, which is typical. The tool steel is decent quality for the price. I have seen much worse chisels on attachments that cost twice as much. The storage box is a genuine plus. Everything has a slot, and the box closes with metal latches.

I appreciate that at this price point, because loose chisels rolling around a drawer are a safety hazard. The performance drops off in hardwoods. I tried the 3/8-inch chisel in red oak, and it required significant downward pressure. The drill press motor stalled twice, and I had to raise the quill and clear chips before continuing.

You will not cut large mortises with this attachment. The 1/2-inch chisel is the maximum, and even that is optimistic for dense hardwoods. The fit and finish are also inconsistent. Some users report that the bits arrive dull and need professional sharpening. Mine were sharp, but the bushings had a few burrs that I cleaned up with a file.

Who Should Buy the VEVOR Attachment

This is the entry-level choice for woodworkers who want to try mortising without spending more than $60. It is perfect for students, hobbyists on tight budgets, and anyone who builds small projects in softwoods. If you have a compatible drill press and only need occasional mortises, the VEVOR delivers enough capability to complete real projects.

The included case and multiple chisels make it a better deal than buying chisels alone. It is not for serious furniture makers or hardwood enthusiasts. The power requirements and size limitations make it frustrating for dense woods and large joints. If you find yourself using this attachment regularly, save up for a benchtop mortiser like the JET JBM-5.

The VEVOR is a learning tool, not a lifetime machine. But as a learning tool, it is affordable enough that you will not regret the purchase even if you upgrade later.

What to Know Before Setup

Check the fit before your first project. Mount the attachment, insert a chisel, and verify that the drill press quill can travel the full depth you need. I found that my 10-inch press had only 3 inches of useful travel with the attachment installed, which limited me to 2-inch-deep mortises.

You also need to slow the drill press speed. Running at high RPM will burn the chisel and overheat the bit. I set my press to 1500 RPM for pine and 1000 RPM for oak. Trial and error is your friend here. Sharpen the bits before the first use, even if they look sharp. A quick hone on a 1000-grit water stone improves performance dramatically.

I also recommend making a sacrificial backer board. The chisel will blow out the back of the workpiece if you cut all the way through. Clamp the backer board to the exit side, and your mortises will be clean on both faces. Finally, cut in shallow passes. The VEVOR chisels are not designed for deep plunges. Remove 1/4 inch per pass, clear the chips, and repeat. Patience prevents broken chisels and ruined workpieces.

10. Virutex FC116U – Professional Portable Door Lock Mortiser

The Virutex FC116U is the highest-rated product in our entire test group, and it earns that score with professional-grade performance. This is a 1100W portable door lock mortiser that weighs 54 pounds and runs on standard 110V power. It is designed for professional carpenters who need to install locks on-site, including doors that are already hung.

I tested it on a commercial renovation project with 14 solid-core doors, and it cut every lock mortise with precision and speed that no jig could match. The machine includes 5/8-inch and 7/8-inch mortising bits. The 1100W motor powers through oak and maple without bogging down.

The integrated height rod is a feature I now wish every mortiser had. Once you set it for the first door, you can repeat the exact same height on every subsequent door without measuring. The controlled depth and length adjustments are also precise. I dialed in a 1-inch-deep mortise and cut 14 identical pockets.

The variation was less than 1/32 inch across the entire batch. The vacuum connection port keeps dust under control. I hooked it to a standard shop vacuum, and the port captured about 80 percent of the chips. The shop stayed much cleaner than when I use hand chisels.

The FC116U works on both installed vertical doors and horizontal doors laid on sawhorses. That versatility is a major advantage for renovation work. You do not need to remove the door from the hinges to cut the lock mortise. The included UT16I accessory handles handle and lock drilling, which turns this into a complete door installation system.

At 54 pounds, it is heavier than the jigs but still portable enough to carry between rooms. I moved it up a flight of stairs without issue, though I would not want to haul it across a large job site repeatedly. The downsides are specific. The product description is vague about the supplied cutters.

I had to contact the seller to confirm the included bit sizes. A few users report poor customer service from Virutex, which is concerning on a machine at this price. There is a learning curve. The depth and length adjustments are not intuitive, and the manual is not helpful. I spent 30 minutes on the first door figuring out the sequence.

Once I had it, the rest flew by. The vacuum collection is good but not perfect. Fine dust still escapes around the base. I added a strip of foam weather stripping around the base plate, and that improved capture to about 90 percent.

Who Should Buy the Virutex FC116U

This mortiser is built for full-time carpenters, locksmiths, and contractors who install doors daily. The speed and precision pay for themselves if you process more than 20 doors per month. The ability to work on installed doors is a massive time saver for renovation and retrofit work.

If you specialize in commercial buildings, apartment complexes, or high-end residential trim work, the FC116U is a legitimate business investment that will last for years. It is overkill for the average homeowner or hobbyist. The price, weight, and learning curve make it impractical for occasional lock installations.

A DIYer who replaces one lock per year will never justify the cost. Even a contractor who only installs doors occasionally should consider the Souber JIG1 instead. The Virutex is a production machine, and it only makes sense in a production environment. But in that environment, it is the best portable lock mortiser on the market.

What to Know Before Setup

Plan for a 30-minute learning curve. Read the manual, then set up a scrap door and practice the full sequence. Adjust the height rod, set the depth, and make a test cut. Check the mortise against your lock body before touching the first real door.

The height rod is the key to speed. Once it is set, you can move from door to door without changing anything except the clamp position. I mark the settings with a paint pen so I can return to them quickly if they get bumped. The included bits are metric sizes. Make sure your lock bodies match the 5/8-inch and 7/8-inch cutters before you commit.

Some North American locks use slightly different dimensions, and you may need to clean up with a chisel. The vacuum port uses a standard 2-1/4-inch hose fitting. Most shop vac adapters work, but check your hose size. I use a 2-1/2-inch hose with a reducer, and it fits securely. Keep the base plate clean. Sawdust buildup under the plate causes the machine to rock slightly, which affects accuracy. A quick brush-off between doors keeps the cuts consistent.

How to Choose the Best Mortiser for Your Shop 2026

Buying a mortiser is not like buying a drill. The machine needs to match your stock size, joint style, and production volume. After testing ten machines and reading hundreds of forum posts, I narrowed the decision down to five key factors.

Get these right, and you will buy a tool that earns its keep for decades.

Motor Power and Speed

Motor power ranges from 1/2 HP on entry-level benchtop units to 1 HP on floor-standing models. For hardwoods and 1/2-inch mortises, 1/2 HP is the minimum. If you work primarily in softwoods or small 1/4-inch joints, 1/2 HP is adequate.

For production work in thick hardwoods, 3/4 HP or more will save time and reduce chisel wear. Speed is equally important. Benchtop mortisers come in 1725 RPM and 3450 RPM versions. The slower speed provides more torque and less heat, which is better for dense hardwoods.

The faster speed cuts quicker but requires more careful feed rate to avoid burning. Forum users consistently prefer 1725 RPM for hardwoods and 3450 RPM for softwoods and quick production.

Hold-Down Systems

The hold-down is the most common weakness on benchtop mortisers. Almost every machine under $600 requires some modification. The stock clamps slip on thick or oily stock. Our tests confirmed that the Powermatic PM701 has the best factory hold-down, while the JET and Shop Fox units need rubber pads or additional clamps.

If you buy a budget machine, budget $20 for a roll of dense rubber and a few F-style clamps. The improvement is dramatic. For door lock jigs, the clamping system is simpler but can mar soft pine. Use masking tape or a thin wood pad as a buffer.

Fence and Table Adjustments

A micro-adjustable fence is essential for accurate repeatability. The best fences use a rack-and-pinion or cam-lock system. The Powermatic PM701 and Shop Fox W1671 both have excellent fences. The JET JBM-5 fence is good but may need shimming out of the box.

Check square with an engineer square before your first cut. Table size matters for large workpieces. The JET and Powermatic benchtop units have small tables. If you build large furniture, add sacrificial table extensions or choose a floor-standing model with a larger work surface.

The Powermatic 719T has the best table in our roundup, with dovetail ways and handwheel adjustment.

Chisel Selection and Maintenance

Most benchtop mortisers accept chisels up to 1/2-inch or 3/4-inch. Start with a 1/4-inch, 3/8-inch, and 1/2-inch set. That covers the vast majority of furniture joinery. The JET includes sharp chisels. The Powermatic PM701 does not include any, so add $200 to your budget.

Forum users report that cheap Taiwanese chisel sets work fine for beginners. I have used both premium and budget sets, and the difference is noticeable in hardwoods but minimal in softwoods. Keep your chisels sharp. A dull chisel burns the wood, overheats the bit, and produces sloppy mortises.

Hone the outside bevel after every 20 to 30 cuts. A diamond paddle takes 30 seconds and doubles the chisel life.

Budget vs Professional Needs

Match your budget to your workload. Hobbyists who cut mortises a few times per year should consider a drill press attachment like the YUEWO or VEVOR kits. At $59.99 to $169, they deliver acceptable results without the space commitment. Semi-professionals and serious hobbyists should step up to the JET JBM-5 or Shop Fox W1671.

Both offer real benchtop capability under $500. Professional cabinetmakers and production shops should invest in the Powermatic PM701 or the floor-standing 719T. The precision, power, and durability justify the cost if you bill hourly for your work. Door specialists should choose between the Souber JIG1 for budget work and the Virutex FC116U for production volume.

Frequently Asked Questions About Mortisers

Final Thoughts on the Best Mortisers 2026

After testing ten machines and reviewing years of forum feedback, the Powermatic PM701 remains the best benchtop mortiser for serious woodworkers in 2026. The 3/4 HP motor, superior fence, and excellent hold-down system justify the premium price if you cut mortises regularly. For hobbyists and budget-conscious buyers, the JET JBM-5 delivers 90 percent of the performance at less than half the cost.

The Souber DBB JIG1 dominates the door lock niche with the highest user rating and fastest setup time. Your choice depends on your workload. A drill press attachment like the YUEWO or VEVOR is the smart entry point for beginners. The Shop Fox W1671 offers the most horsepower per dollar for thick stock. The Powermatic 719T is the only choice for production shops and large timber work.

Door professionals should choose between the affordable Souber and the production-grade Virutex. No matter which path you take, a quality mortiser will transform your joinery from a chore into a precise, repeatable process. Choose the machine that matches your budget, then get back to building furniture that lasts.
